50020N-3-M5 AIGNEP | 50N Series | Straight Male | 3mm Tube x M5 Male | Pack of 10

50020N-3-M5 by AIGNEP | 50N Series | 3mm Tube x M5 Male | Straight | Pack of 10

Save $0.20

$21.03

$21.03 - $21.03

$21.03

$20.83

$20.83 - $20.83

$20.83

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 50020N-3-M5 AIGNEP \| 10 \|
Series:	50N Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Swivel Male - BSPP

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176 ? F
Tubing Compatibility: PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP
Media: Compressed Air, Vacuum
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: BSPP

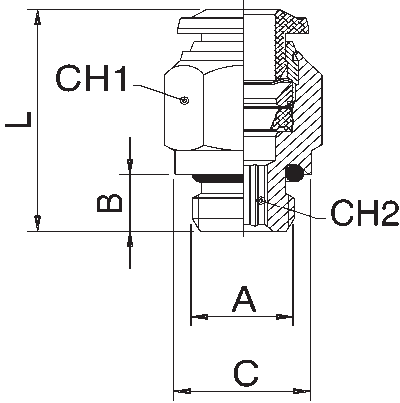

Product Number	Tube	Thread Type	Seal	A	B	C	L	CH1	CH2
50020N-3-M5	3 mm	BSPP	NBR	M5	4 mm	8 mm	19 mm	8 mm	2 mm
50020N-4-M3	4 mm	BSPP	NBR	M3	3 mm	10 mm	21 mm	8 mm	2 mm
50020N-4-M5	4 mm	BSPP	NBR	M5	4 mm	8 mm	21 mm	10 mm	2 mm
50020N-4-1/8	4 mm	BSPP	NBR	1/8"	6 mm	13 mm	20 mm	10 mm	3 mm
50020N-4-1/4	4 mm	BSPP	NBR	1/4"	8 mm	16 mm	19.5 mm	16 mm	3 mm
50020N-5-M5	5 mm	BSPP	NBR	M5	4 mm	8 mm	23.5 mm	12 mm	2 mm
50020N-5-1/8	5 mm	BSPP	NBR	1/8"	6 mm	13 mm	22 mm	12 mm	4 mm
50020N-5-1/4	5 mm	BSPP	NBR	1/4"	8 mm	16 mm	22 mm	12 mm	4 mm
50020N-6-M5	6 mm	BSPP	NBR	M5	4 mm	10 mm	24.5 mm	13 mm	2 mm
50020N-6-1/8	6 mm	BSPP	NBR	1/8"	6 mm	13 mm	23.5 mm	13 mm	4 mm
50020N-6-1/4	6 mm	BSPP	NBR	1/4"	8 mm	16 mm	23.5 mm	13 mm	4 mm
50020N-6-3/8	6 mm	BSPP	NBR	3/8"	9 mm	20 mm	25 mm	13 mm	4 mm
50020N-6-1/2	6 mm	BSPP	NBR	1/2"	10 mm	25 mm	27 mm	13 mm	4 mm
50020N-8-1/8	8 mm	BSPP	NBR	1/8"	6 mm	13 mm	25 mm	14 mm	5 mm
50020N-8-1/4	8 mm	BSPP	NBR	1/4"	8 mm	16 mm	23 mm	14 mm	6 mm
50020N-8-3/8	8 mm	BSPP	NBR	3/8"	9 mm	20 mm	24 mm	14 mm	6 mm
50020N-8-1/2	8 mm	BSPP	NBR	1/2"	10 mm	25 mm	26.5 mm	14 mm	6 mm
50020N-10-1/4	10 mm	BSPP	NBR	1/4"	8 mm	16 mm	30.5 mm	17 mm	6 mm
50020N-10-3/8	10 mm	BSPP	NBR	3/8"	9 mm	20 mm	27.5 mm	17 mm	8 mm
50020N-10-1/2	10 mm	BSPP	NBR	1/2"	10 mm	25 mm	27 mm	17 mm	8 mm
50020N-12-1/4	12 mm	BSPP	NBR	1/4"	8 mm	16 mm	34.5 mm	20 mm	6 mm
50020N-12-3/8	12 mm	BSPP	NBR	3/8"	9 mm	20 mm	34 mm	20 mm	8 mm
50020N-12-1/2	12 mm	BSPP	NBR	1/2"	10 mm	25 mm	31 mm	22 mm	10 mm
50020N-14-3/8	14 mm	BSPP	NBR	3/8"	9 mm	20 mm	35 mm	21 mm	10 mm
50020N-14-1/2	14 mm	BSPP	NBR	1/2"	10 mm	25 mm	32 mm	22 mm	11 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
