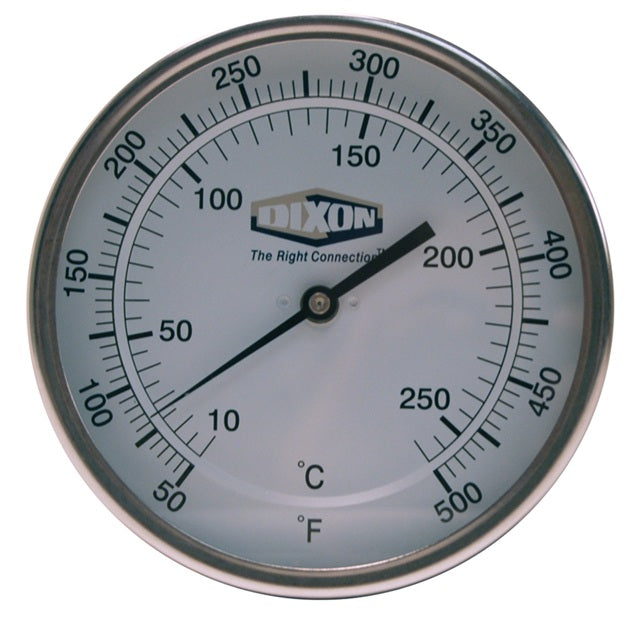

50025104 by Dixon Valve | Bi-Metal Thermometer | Model 50 | Back Connected | 2-1/2" Stem Length | 5" Face | Temperateure Range: 50-500°F

50025104 by Dixon Valve | Bi-Metal Thermometer | Model 50 | Back Connected | 2-1/2" Stem Length | 5" Face | Temperateure Range: 50-500°F

$93.27 - $93.27
$93.27
$97.51
$97.51 - $97.51
$97.51

Dixon Valve
Bi-Metal Thermometer | Model 50 | Back Connected

Features a Bi-metal element: an extremely responsive temperature sensing helix which has been carefully sized and tested, heat treated and aged to relieve inherent stresses and insure continued accuracy.
Specifications for Variant SKU: 50025104 Dixon
Features:
  • Case: sturdy, corrosion-resistant series 304 stainless steel.
  • Bezel crystal: optically clear, strong glass, gasketed to maintain weather-tight integrity is standard.
  • Stem: 304 series stainless steel, welded at tip and case connector to prevent leakage, 1/4" (6.35 mm) diameter.
  • ASME B40.200 compliant.
  • Slotted-hex adjustment head offers screwdriver or wrench use to field calibrate the thermometer.
  • Dampening: bi-metal helix is coated with a viscous silicone to minimize pointer oscillation and to improve temperature transmission.
  • Immersion: for accurate temperature readings, immerse stem a minimum of 2" (50 mm) in agitated liquids or 4" (100 mm) in moving air or gas.
  • Over range: temporary over or under range of 50% of scale up to 260°C or 500°F will not affect the instrument accuracy.
  • Accuracy: guaranteed to be accurate to within 1% of full scale.
  • Standard connection is 1/2" male NPT.
Specifications:
  • Maximum operating pressure: 125 PSI
5" Face
Part Number		 Stem Length Temperature Range
50025104 2-1/2" 50-500°F / 10-260°C
50040064 4" 0-250°F / -20-120°C
