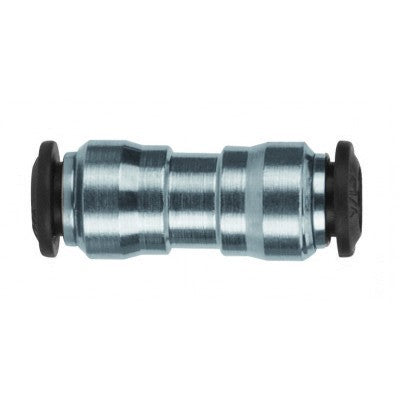

50040N-12 AIGNEP | 50N Series | Union |12mm Tube | Pack of 10

50040N-12 by AIGNEP | 50N Series | Union | 12mm Tube | Pack of 10

Save $0.37

$37.92

$37.92 - $37.92

$37.92

$37.55

$37.55 - $37.55

$37.55

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 50040N-12 AIGNEP \| 10 \|
Series:	50N Series
Shape (Orientation):	Straight
Ends Configuration:	12mm Push-to-Connect, 12mm Push-to-Connect, Some Ends Match
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Union

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176 ? F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70

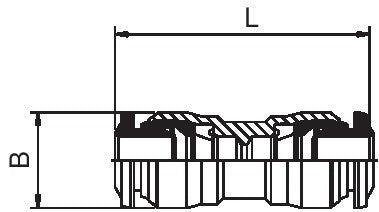

Product Number	Tube	B (IN)	B	L
50040N-3	3 mm	0.334"	8.5 mm	26 mm
50040N-4	4 mm	0.413"	10.5 mm	30.5 mm
50040N-5	5 mm	0.452"	11.5 mm	33 mm
50040N-6	6 mm	0.492"	12.5 mm	34 mm
50040N-6-4	6 x 4 mm	0.492"	12.5 mm	32 mm
50040N-8	8 mm	0.570"	14.5 mm	36 mm
50040N-8-6	8 x 6 mm	0.570"	14.5 mm	35 mm
50040N-10	10 mm	0.688"	17.5 mm	42 mm
50040N-10-8	10 x 8 mm	0.688"	17.5 mm	42 mm
50040N-12	12 mm	0.807"	20.5 mm	47 mm
50040N-14	14 mm	0.846"	21.5 mm	49 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
