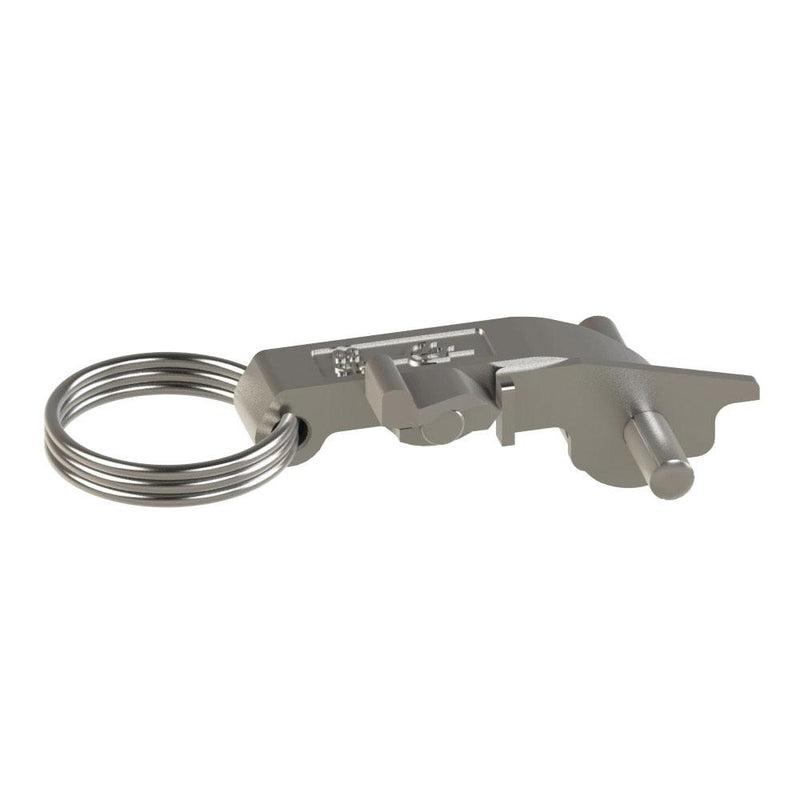

5009010A (SLS11) by PT-Coupling | STA-LOK® II Replacement Cam Assembly | For 1" Coupler Size | 316 Stainless Steel

5009010A (SLS11) by PT-Coupling | STA-LOK® II Replacement Cam Assembly | For 1" Coupler Size | 316 Stainless Steel

Save $8.12 Save $8.12
$21.85
$21.85 - $21.85
$21.85
$13.73
$13.73 - $13.73
$13.73

PT Coupling
STA-LOK® II Replacement Cam Assembly

Includes: 1 cam arm, pin, pull ring, and lock plate.

Made in the USA
Specifications for Variant SKU: 5009010A PT-Coupling
Series: STA-LOK II
Material(s): 316 Stainless Steel
Overview:
  • STA-LOK® II is a passive locking feature that automatically locks the handle into place, if it is fully closed. To open the handles there are manual quick release levers. Proper use of this mechanism can help prevent spills by keeping the cam arms from opening under adverse conditions, such as high vibrations, pulsing, wear, and hazardous materials. STA-LOK® II couplers meet the Coast Guard ASTM 1122-87 specifications for Quick Disconnect Couplers.
Features & Applications:
  • Includes: 1 Cam Arm, Pin, Pull Ring and Lock Plate
  • 316 Stainless Steel:
    • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
    • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Brass:
    • Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals.
    • Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Coupler
Size		 Part
Name		 Item #
316 Stainless Steel
1" SLS11 5009010A
1-1/4" SLS12 5009012A
1-1/2" SLS15 5009015A
2", 2-1/2" SLS20 5009020A
3", 4", & 5" SLS30 5009030A
6", 8", 10" & 12" SLS60 5009060A
Brass
1" SLB11 5006010A
1-1/2" SLB15 5006015A
2" & 2-1/2" SLB20 5006020A
3", 4", & 5" SLB30 5006030A
6", 8", 10" & 12" SLB60 5006060A

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
