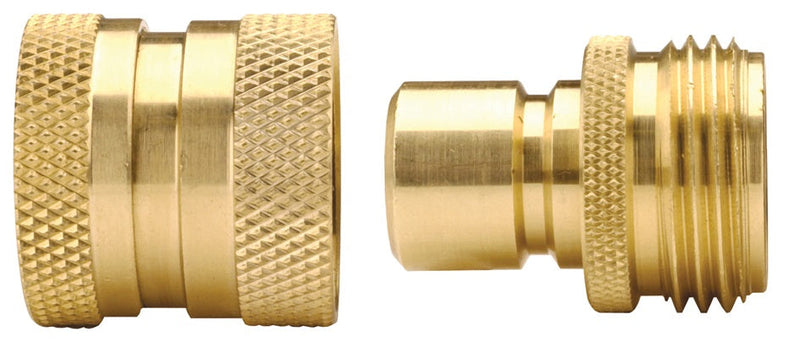

500QCKV by Dixon Valve | Garden Hose Quick Disconnect Coupling | 3/4" Male GHT x 3/4" Female GHT | Complete Assembly | Valved | Brass

Save $7.72

$19.56

$19.56 - $19.56

$19.56

$11.84

$11.84 - $11.84

$11.84

Dixon Valve
Garden Hose Quick Disconnect | Complete Assembly

Ideal for when you need frequent access to a garden hose line.

Easy push-pull ring for long-lasting and quick hose attachments.

Specifications for Variant SKU: 500QCKV Dixon
Shape (Orientation):	Straight
Ends Configuration:	3/4in Female GHT, 3/4in Male GHT, 3/4in Male Garden Hose QD Interchange, 3/4in Female Garden Hose QD Interchange
Material(s):	Brass

Features:	Fittings are easier to handle and heavy duty. The female couplings have a sleeve-lock socket.
Use:	To use, slide back the sleeve on the socket, insert the plug, and release the sleeve. To disconnect, slide the sleeve back and pull out the plug. The female coupler is constructed with an internal shut-off valve. The valve closes and stops the flow of water when the coupling is separated.
Specifications:	Maximum operating pressure: 150 PSI at ambient temperature 70 °F (21 °C). Maximum temperature 140 °F (60 °C).

Complete Assembly

Part Number	Previous Part Number	Coupling Type	Threads	Material	Description
500QCK	DGH7	Complete Assembly	3/4" Male GHT x 3/4" Female GHT	Brass	Unvalved
500QCKSS	DGH7SS	Complete Assembly	3/4" Male GHT x 3/4" Female GHT	303 Stainless Steel	Unvalved
500QCKV	DGH7V	Complete Assembly	3/4" Male GHT x 3/4" Female GHT	Brass	Valved

Female Coupler

Part Number	Previous Part Number	Coupling Type	Threads	Material	Description
500QCF	DGH7C	Female Coupler	3/4" Female GHT	Brass	Unvalved
500QCFSS	DGH7CSS	Female Coupler	3/4" Female GHT	303 Stainless Steel	Unvalved
500QCFV	DGH7CV	Female Coupler	3/4" Female GHT	Brass	Valved Water Shutoff (Has an internal shut-off valve that closes and stops the flow of water when the coupling is separated.)

Male Plug

Part Number	Previous Part Number	Coupling Type	Threads	Material
500QCM	DGH7P	Male Plug	3/4" Male GHT	Brass
500QCMSS	DGH7PSS	Male Plug	3/4" Male GHT	303 Stainless Steel

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
