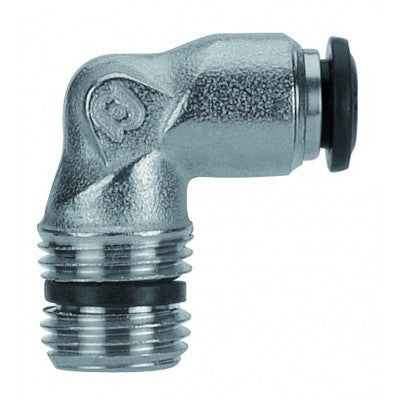

50100N-10-1/4" AIGNEP | 50N Series | Fixed 90° Elbow | 8mm Tube x 1/4" BSPT Male | Pack of 10

50100N-10-1/4 by AIGNEP | 50N Series | Fixed | 8mm Tube x 1/4" BSPT Male | 90° Elbow | Pack of 10

Save $21.42

$62.22

$62.22 - $62.22

$62.22

$40.80

$40.80 - $40.80

$40.80

Package Quantity: 10 ea

Specifications for Variant SKU: 50100N-10-1/4 AIGNEP \| 10 \|
Series:	50N Series
Shape (Orientation):	90 Degree
Ends Configuration:	8mm Push-to-Connect, 1/4in Male BSPT
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Fixed Male Elbow - BSPT

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-160 ? F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR

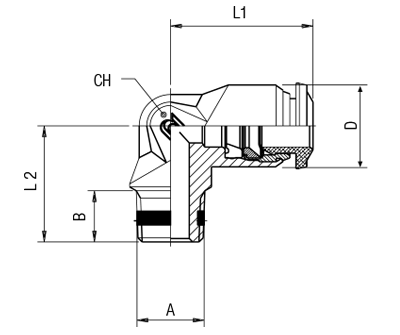

Tube	A	B	L1	L2	CH	D
50100N-4-M5	4 mm	M5	5 mm	17 mm	15 mm	9 mm	10 mm
50100N-4-1/8	4 mm	1/8"	7.5 mm	17 mm	15.5 mm	9 mm	10 mm
50100N-5-M5	5 mm	M5	5 mm	20 mm	17 mm	11 mm	12.5 mm
50100N-5-1/8	5 mm	1/8"	7.5 mm	20 mm	17.5 mm	11 mm	12.5 mm
50100N-6-1/8	6 mm	1/8"	7.5 mm	21 mm	17.5 mm	11 mm	12.5 mm
50100N-6-1/4	6 mm	1/4"	11 mm	21 mm	21.5 mm	11 mm	12.5 mm
50100N-8-1/8	8 mm	1/8"	7.5 mm	22.5 mm	19 mm	13 mm	14 mm
50100N-8-1/4	8 mm	1/4"	11 mm	22.5 mm	21.5 mm	13 mm	14 mm
50100N-10-1/4	10 mm	1/4"	11 mm	26.5 mm	24.5 mm	16 mm	17 mm
50100N-10-3/8	10 mm	3/8"	11.5 mm	26.5 mm	24 mm	16 mm	17 mm
50100N-12-1/4	12 mm	1/4"	11 mm	30.5 mm	28 mm	19 mm	21.5 mm
50100N-12-3/8	12 mm	3/8"	11.5 mm	30.5 mm	28 mm	19 mm	21.5 mm
