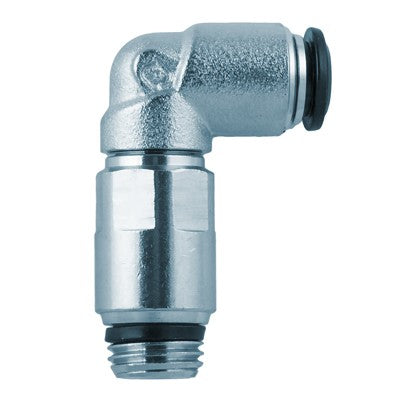

50120N-5-1/8" AIGNEP | 50N Series | Extended Swivel 90° Elbow | 5mm Tube x 1/8" Swift-Fit Male | Pack of 10

50120N-5-1/8" AIGNEP | 50N Series | Extended Swivel Elbow | 5mm Tube x 1/8" Swift-Fit Male | Pack of 10

50120N-5-1/8 by AIGNEP | 50N Series | Extended Swivel | 5mm Tube x 1/8" Swift-Fit Male | 90° Elbow | Pack of 10

Save $20.92

$59.72

$59.72 - $59.72

$59.72

$38.80

$38.80 - $38.80

$38.80

Package Quantity: 10 ea

Specifications for Variant SKU: 50120N-5-1/8 AIGNEP \| 10 \|
Series:	50N Series
Shape (Orientation):	90 Degree
Ends Configuration:	5mm Push-to-Connect, 1/8in Male Swift-Fit
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Swivel Male Extended Elbow

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-160 ? F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70

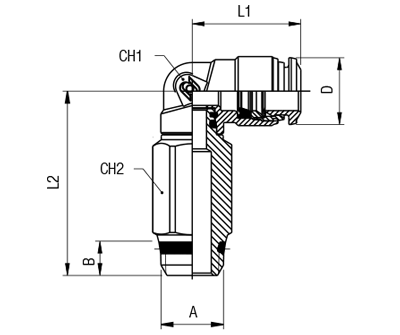

Product Number	Tube	A	B	L1	L2	CH1	CH2	D
50120N-4-1/8	4 mm	1/8"	5.5 mm	18 mm	31.5 mm	9 mm	12 mm	10 mm
50120N-4-1/4	5/32"	1/4"	7 mm	18 mm	33 mm	9 mm	15 mm	10 mm
50120N-5-1/8	5 mm	1/8''	5.5 mm	20 mm	36 mm	11 mm	12 mm	12.5 mm
50120N-6-1/8	6 mm	1/8"	5.5 mm	21 mm	36 mm	11 mm	12 mm	12.5 mm
50120N-6-1/4	6 mm	1/4"	7 mm	21 mm	37.5 mm	11 mm	15 mm	12.5 mm
50120N-8-1/8	8 mm	1/8"	5 mm	22.5 mm	40.5 mm	12 mm	12 mm	14.5 mm
50120N-8-1/4	8 mm	1/4"	7 mm	22.5 mm	40.5 mm	12 mm	15 mm	14.5 mm
50120N-8-3/8	8 mm	3/8"	7.5 mm	22.5 mm	41 mm	12 mm	16 mm	14.5 mm
50120N-10-1/4	10 mm	1/4"	7 mm	26.5 mm	46 mm	14 mm	15 mm	17.5 mm
50120N-10-3/8	10 mm	3/8"	7.5 mm	26.5 mm	44 mm	14 mm	17 mm	17.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
