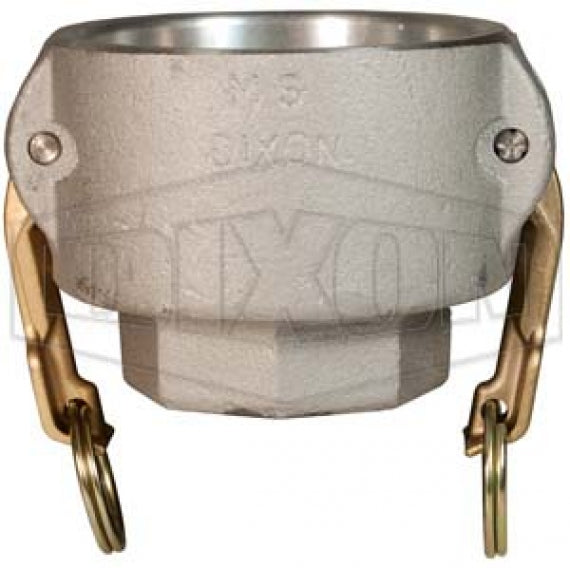

5040-D-AL by Dixon Valve | Cam & Groove Reducer (Jump Size) Coupler | Type D | 5" Coupler x 4" Female NPT | Aluminum

5040-D-AL by Dixon Valve | Cam & Groove Reducer (Jump Size) Coupler | Type D | 5" Coupler x 4" Female NPT | Aluminum

Save $21.63 Save $21.63
$270.46
$270.46 - $270.46
$270.46
$248.83
$248.83 - $248.83
$248.83

Dixon Valve
Cam & Groove Reducer (Jump Size) Coupler | Type D | Coupler x Female NPT

Designed for use with liquids.
Specifications for Variant SKU: 5040-D-AL Dixon
Shape (Orientation): Straight
Cam Type: Type D
Ends Configuration: 5in Female Cam & Groove, 5in Female NPT
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Precision machined to rigid tolerances.
  • Stainless pins will not rust or bind, providing great strength and safety.
  • Recess holds gasket firmly in place - ensures proper placement.
Construction:
  • Nitrile Rubber gasket.
  • Durable stainless steel cam arm pins.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number		 Brass
Part Number		 316 Stainless Steel
Part Number		 Size
Coupler x Female NPT		 Maximum Operating Pressure
1510-D-AL - 1510-D-SS* 1-1/2" x 1" 250 PSI
2015-D-AL - 2015-D-SS 2" x 1-1/2" 250 PSI
3020-D-AL - 3020-D-SS 3" x 2" 125 PSI
4030-D-AL 4030-D-BR 4030-D-SS* 4" x 3" 100 PSI
5040-D-AL* - - 5" x 4" 75 PSI
6040-D-AL* - - 6" x 4" 75 PSI

* Parts are produced as a welded fabrication.
