50700N-10-8 AIGNEP | 50N Series | Reducer | 10mm Stud x 8mm Tube | Pack of 10

50700N-10-8 by AIGNEP | 50N Series | Reducer | 10mm Stud x 8mm Tube | Pack of 10

Save $16.33

$36.73

$36.73 - $36.73

$36.73

$20.40

$20.40 - $20.40

$20.40

Package Quantity: 10 ea

Specifications for Variant SKU: 50700N-10-8 AIGNEP \| 10 \|
Series:	50N Series
Shape (Orientation):	Straight
Ends Configuration:	10mm Push-to-Connect, 8mm Push-to-Connect
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Tube Reducer

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Media: Compressed Air, Vacuum
Body: Nickel Plated Brass
Thread Seal: NBR

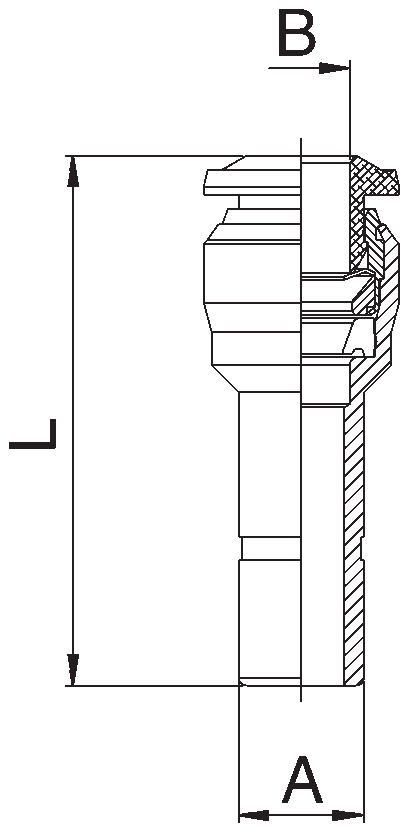

Product Number	A	B	L	D
50700N-4-3	4 mm	3 mm	30 mm	8.5 mm
50700N-5-4	5 mm	4 mm	32 mm	11.5 mm
50700N-6-4	6 mm	4 mm	30 mm	10.5 mm
50700N-6-5	6 mm	5 mm	34.5 mm	11.5 mm
50700N-8-4	8 mm	4 mm	32.5 mm	10.5 mm
50700N-8-6	8 mm	6 mm	34.5 mm	12.5 mm
50700N-10-4	10 mm	4 mm	31.5 mm	10.5 mm
50700N-10-6	10 mm	6 mm	37.5 mm	12.5 mm
50700N-10-8	10 mm	8 mm	38.5 mm	14.5 mm
50700N-12-8	12 mm	8 mm	39.5 mm	14.5 mm
50700N-12-10	12 mm	10 mm	43 mm	17.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
