50900N-6-1/8" AIGNEP | 50N Series | Manifold | 6mm Tube x 1/8" BSPP Male
50900N-6-1/8 by AIGNEP | 50N Series | Manifold | 6mm Tube x 1/8" BSPP Male
50900N-6-1/8" AIGNEP | 50N Series | Manifold | 6mm Tube x 1/8" BSPP Male

50900N-6-1/8 by AIGNEP | 50N Series | Manifold | 6mm Tube x 1/8" BSPP Male

Save $0.21 Save $0.21
$21.12
$21.12 - $21.12
$21.12
$20.91
$20.91 - $20.91
$20.91
Specifications for Variant SKU: 50900N-6-1/8 AIGNEP
Series: 50N Series
Shape (Orientation): Manifold
Ends Configuration: 6mm Push-to-Connect, 1/8in Male BSPP
Material(s): Aluminum

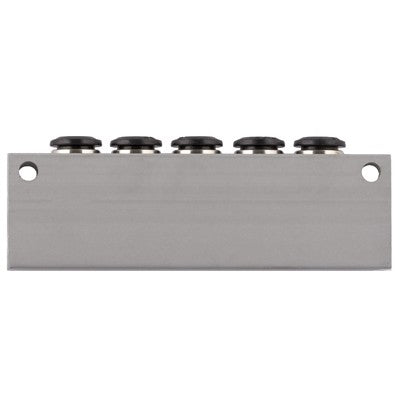

5 Way Aluminum Manifold

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP
Media: Compressed Air, Vacuum
Body: Aluminium

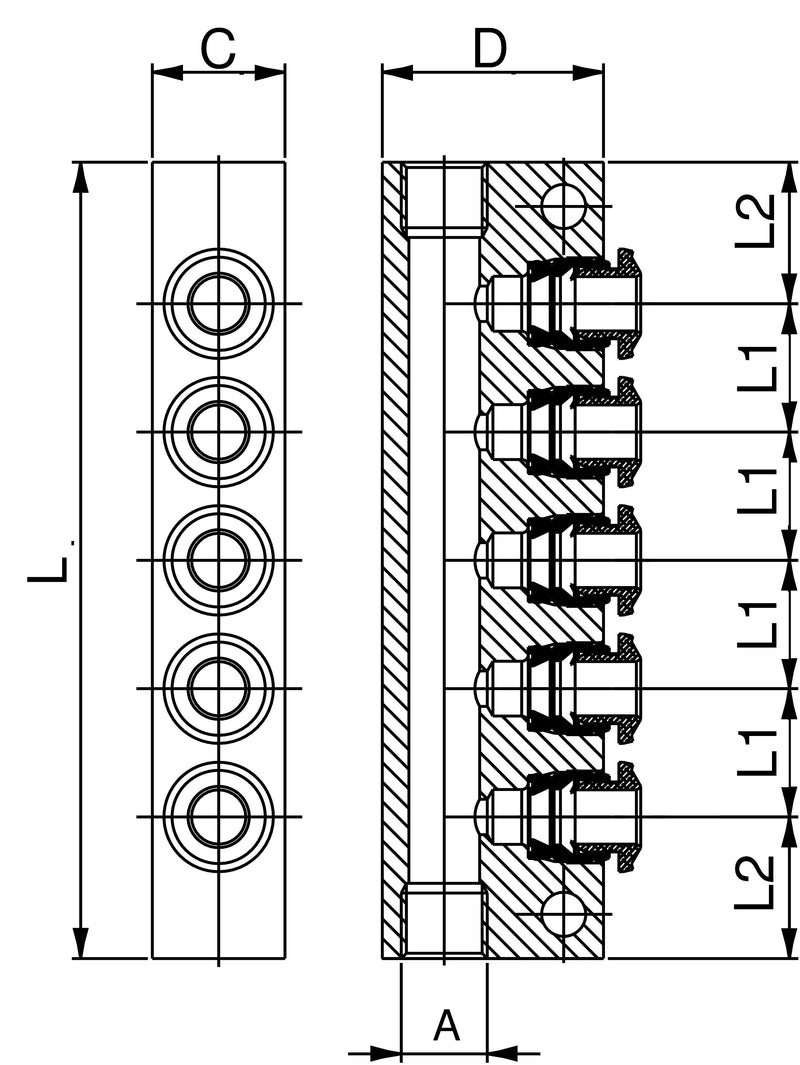

Product Number Tube A L1 L2 C D L
50900N-4-1/8 4 mm 1/8" 12 mm 13.5 mm 15 mm 25 mm 75 mm
50900N-6-1/8 6 mm 1/8" 14.5 mm 16 mm 15 mm 25 mm 90 mm
50900N-6-1/4 6 mm 1/4" 14.5 mm 16 mm 20 mm 30 mm 90 mm
50900N-8-1/4 8 mm 1/4" 16 mm 18 mm 20 mm 30 mm 100 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
