5090596 THERMOBARB® by NewAge | Polypropylene Y Connector FDA | 1/8" Hose ID | Bag of 10

5090596 THERMOBARB® by NewAge | Polypropylene Y Connector FDA | 1/8" Hose ID | Bag of 10

Save $0.84 Save $0.84
$19.11
$19.11 - $19.11
$19.11
$18.27
$18.27 - $18.27
$18.27

PRODUCT DESCRIPTION

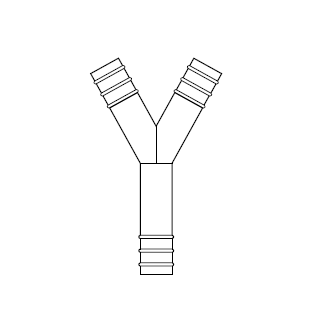

NewAge Industries - THERMOBARB® Plastic Fittings - Series 509 - FDA-Approved Polypropylene (FDA PP) - 'Y' Connector

Package Quantity: 10 EA

Specifications for Variant SKU: 5090596 NewAge | 10 |
Brand: THERMOBARB
Shape (Orientation): Y
Ends Configuration: 1/8in Hose Barb
Material(s): Polypropylene
Applicable Specs & Approvals: BPA Free, California Proposition 65 Compliant, EMEA 410 Compliant, Applicable FDA Requirements
Features:
  • Excellent temperature and chemical resistance
  • Material: polypropylene homopolymer, FDA approved ingredients
  • Free of BPA
  • California Prop 65 and EMEA 410 compliant
  • Low profile ribs for easy assembly
  • Lightweight
  • Gamma sterilizable
  • Widely used in industry and laboratories
  • Maximum Operating Temperature**: 207°F
  • Note: Older style barbs, which differ from ribs, still exist in some inventory, depending on size. Actual product may appear different than shown in drawings.
Recommended Clamps:
  • Oetiker® Clamps
  • Kwik Clamps™ - Nylon Double Bond Hose Clamps
  • Worm Gear Clamps - Stainless Steel Clamps

Part Number Dimensions (Hose ID)
5090596 1/8"
5090631 3/16"
5090666 1/4"
5090701 3/8"
5090771 1/2"
5090806 9/16"

** Values listed are typical and are meant only to aid in design. Field testing should be performed to find the actual values for the application. Clamps must be used in higher pressure applications.
