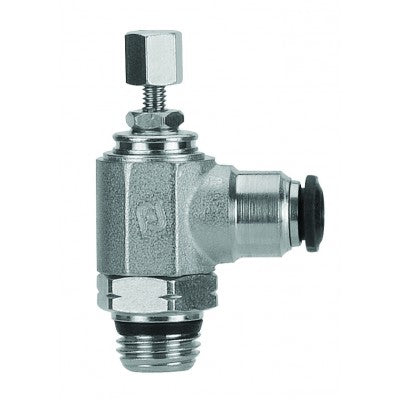

50905N-5-1/4" AIGNEP | Functional (Flow Controls) Series | Flow Control | Meter Out | Knob Adjust | 5mm Tube x 1/4" Swift-Fit Male
50905N-5-1/4 by AIGNEP | Functional (Flow Controls) Series | Flow Control | Meter Out | Knob Adjust | 5mm Tube x 1/4" Swift-Fit Male
50905N-5-1/4" AIGNEP | Functional (Flow Controls) Series | Flow Control | Meter Out | Knob Adjust | 5mm Tube x 1/4" Swift-Fit Male

50905N-5-1/4 by AIGNEP | Functional (Flow Controls) Series | Flow Control | Meter Out | Knob Adjust | 5mm Tube x 1/4" Swift-Fit Male

Save $6.94 Save $6.94
$17.35
$17.35 - $17.35
$17.35
$10.41
$10.41 - $10.41
$10.41
Specifications for Variant SKU: 50905N-5-1/4 AIGNEP
Series: Functional (Flow Controls) Series
Shape (Orientation): 90 Degree
Ends Configuration: 5mm Push-to-Connect, 1/4in Male Swift-Fit
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber

Metric Tube Flow Control (OUT)

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air
Body: Nickel-plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

Product Number Tube A B (IN) B L1 L2 Min L2 Max CH Code
50905N-4-M5 4 mm M5 0.156" 4 mm 19 mm 33 mm 37.5 mm 8 mm C
50905N-4-1/8 4 mm 1/8" 0.215" 5.5 mm 21 mm 41 mm 46.5 mm 14 mm C
50905N-5-M5 5 mm M5 0.156" 4 mm 20 mm 33 mm 37.5 mm 8 mm C
50905N-5-1/8 5 mm 1/8" 0.215" 5.5 mm 21.5 mm 41 mm 46.5 mm 14 mm C
50905N-5-1/4 5 mm 1/4" 0.273" 7 mm 24.5 mm 46.5 mm 52.5 mm 17 mm C
50905N-6-M5 6 mm M5 0.156" 4 mm 20.5 mm 33 mm 37.5 mm 8 mm C
50905N-6-1/8 6 mm 1/8" 0.273" 7 mm 22.5 mm 41 mm 46.5 mm 14 mm C
50905N-6-1/4 6 mm 1/4" 0.215" 5.5 mm 25 mm 46.5 mm 52.5 mm 17 mm C
50905N-8-1/8 8 mm 1/8" 0.215" 5.5 mm 24 mm 41 mm 46.5 mm 14 mm C
50905N-8-1/4 8 mm 1/4" 0.273" 7 mm 26 mm 46.5 mm 52.5 mm 17 mm C
50905N-10-1/4 10 mm 1/4" 0.273" 7 mm 28.5 mm 48.5 mm 55 mm 17 mm C
50905N-10-3/8 10 mm 3/8" 0.293" 7.5 mm 30.5 mm 56 mm 63 mm 20 mm C
50905N-12-3/8 12 mm 3/8" 0.293" 7.5 mm 32.5 mm 56 mm 63 mm 20 mm C
50905N-12-1/2 12 mm 1/2" 0.351" 9 mm 35 mm 61 mm 69 mm 24 mm C
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
