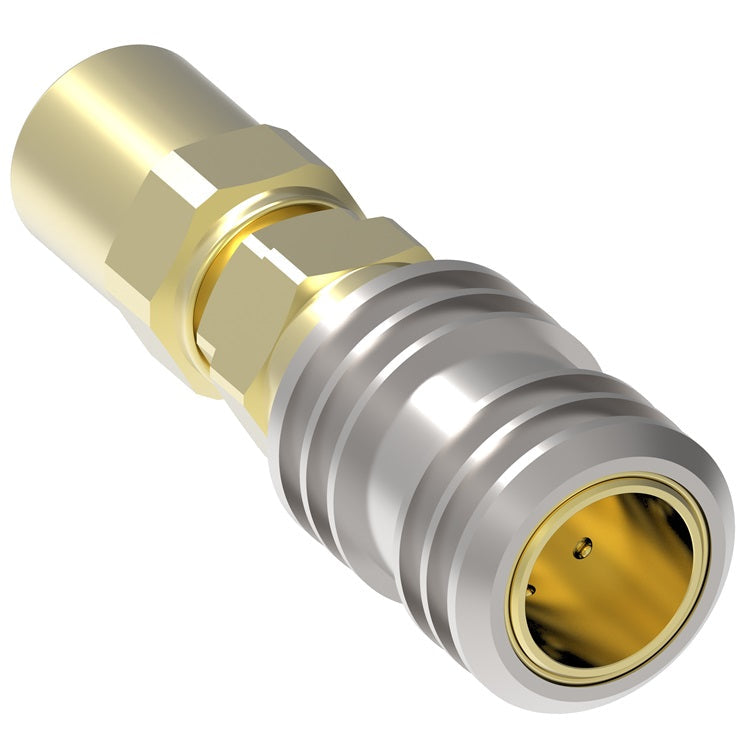

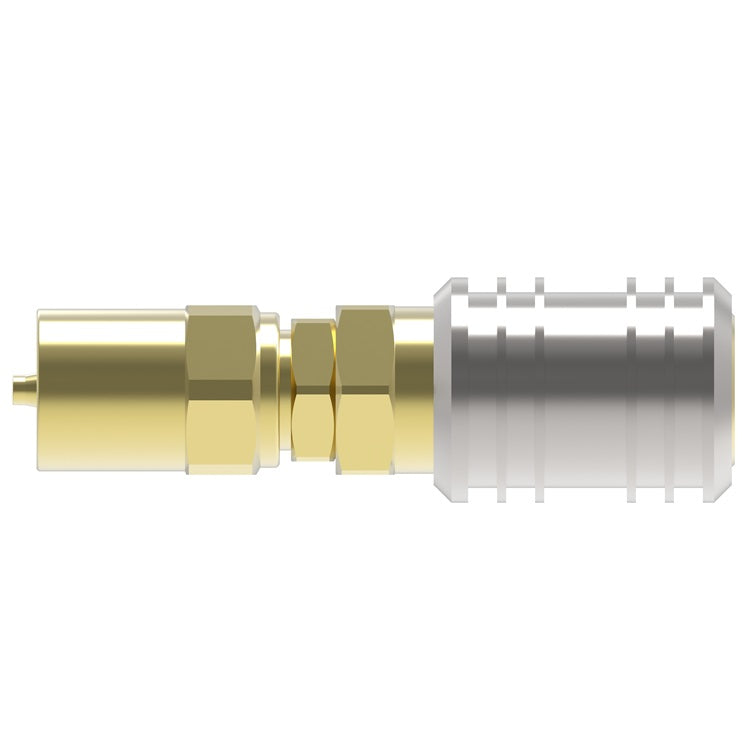

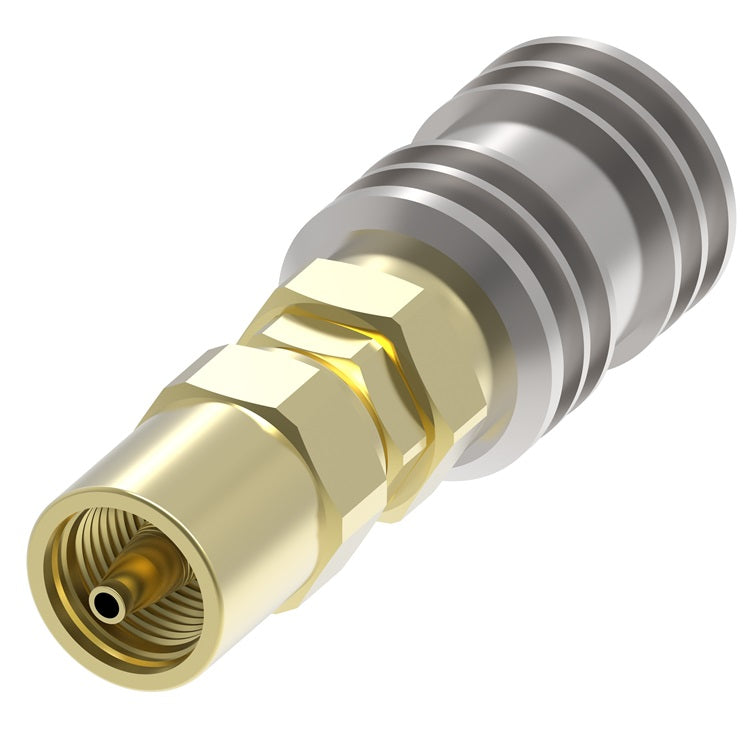

50SP13 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 500 Series | Hose Crimp End | 13/16" Hose OD | 1/2" Hose ID x 1/2" Body Size | Socket | NBR Seal | Brass
50SP13 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 500 Series | Hose Crimp End | 13/16" Hose OD | 1/2" Hose ID x 1/2" Body Size | Socket | NBR Seal | Brass
50SP13 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 500 Series | Hose Crimp End | 13/16" Hose OD | 1/2" Hose ID x 1/2" Body Size | Socket | NBR Seal | Brass
50SP13 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 500 Series | Hose Crimp End | 13/16" Hose OD | 1/2" Hose ID x 1/2" Body Size | Socket | NBR Seal | Brass

50SP13 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 500 Series | Hose Crimp End | 13/16" Hose OD | 1/2" Hose ID x 1/2" Body Size | Socket | NBR Seal | Brass

$50.40 - $50.40
$50.40
$50.40 - $50.40
$50.40

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 500 Series

Quick Disconnect for Pneumatic Applications.

Danfoss Hansen 1000/400/500 Series is an Industrial Interchange pneumatic coupling that is rugged and reliable designed for use with compressed air, gases, and liquids.
Specifications for Variant SKU: 50SP13 Danfoss
Brand: Hansen
Series: 500 Series
Shape (Orientation): Straight
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Ball latching mechanism.
  • All sizes accept US Industrial Interchange.
Applications & Markets:
  • General Pneumatics
  • Construction
  • Industrial Plants
Materials:
  • Standard body material: Brass, Steel, Stainless Steel, Nickel Plated Steel Sleeve
  • Standard seal material: Nitrile (NBR)
Specifications:
  • 1/4" & 1/2" accept ISO 6150 B and A-A-59439 plugs/males.
Series Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
500 1/2" 35 bar 500 psi 140 bar 2,000 psi 2,038 lpm 538 gpm
Interchangeability
All Sizes 1/4" & 1/2" 400 Series
US Industrial Interchange ISO 6150 Series B
A-A-59439
(former MIL-C-4109)		 Tru-Flate
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
500 Series | Sockets
Part Number Coupling Type Body Size Hose ID Hose OD End Type Material Figure Dimensions
A B Hex
50SP13 Socket/Female 1/2" 1/2" 13/16" Hose Crimp End Brass 1 4.09"
(103.9mm)		 1.19"
(30.2mm)		 0.94"
(23.9mm)
500 Series | Plugs
Part Number Coupling Type Body Size Hose ID Hose OD End Type Material Figure Dimensions
C D Hex
5PB7 Plug/Male 1/2" 1/4" 5/8" Hose Crimp End Steel 2 2.81"
(71.4mm)		 0.84"
(21.3mm)		 0.75"
(19.1mm)
5PD7 Plug/Male 1/2" 3/8" 5/8" Hose Crimp End Steel 2 2.94"
(74.7mm)		 0.84"
(21.3mm)		 0.75"
(19.1mm)
5PD9 Plug/Male 1/2" 3/8" 11/16" Hose Crimp End Steel 2 2.94"
(74.7mm)		 0.91"
(23.1mm)		 0.81"
(20.6mm)
5PD11 Plug/Male 1/2" 3/8" 3/4" Hose Crimp End Steel 2 2.94"
(74.7mm)		 0.98"
(24.9mm)		 0.88"
(22.4mm)
5PP13 Plug/Male 1/2" 1/2" 13/16" Hose Crimp End Steel 2 3.62"
(91.9mm)		 1.05"
(26.7mm)		 0.94"
(23.9mm)
5PP15 Plug/Male 1/2" 1/2" 7/8" Hose Crimp End Steel 2 3.62"
(91.9mm)		 1.12"
(28.4mm)		 1.00"
(25.4mm)
5PR23 Plug/Male 1/2" 3/4" 1-1/8" Hose Crimp End Steel 2 3.75"
(95.3mm)		 1.40"
(35.6mm)		 1.25"
(31.8mm)
5PR25 Plug/Male 1/2" 3/4" 1-3/16" Hose Crimp End Steel 2 3.75"
(95.3mm)		 1.47"
(37.3mm)		 1.31"
(33.3mm)
5PR27 Plug/Male 1/2" 3/4" 1-1/4" Hose Crimp End Steel 2 3.75"
(95.3mm)		 1.54"
(39.1mm)		 1.38"
(35.1mm)
