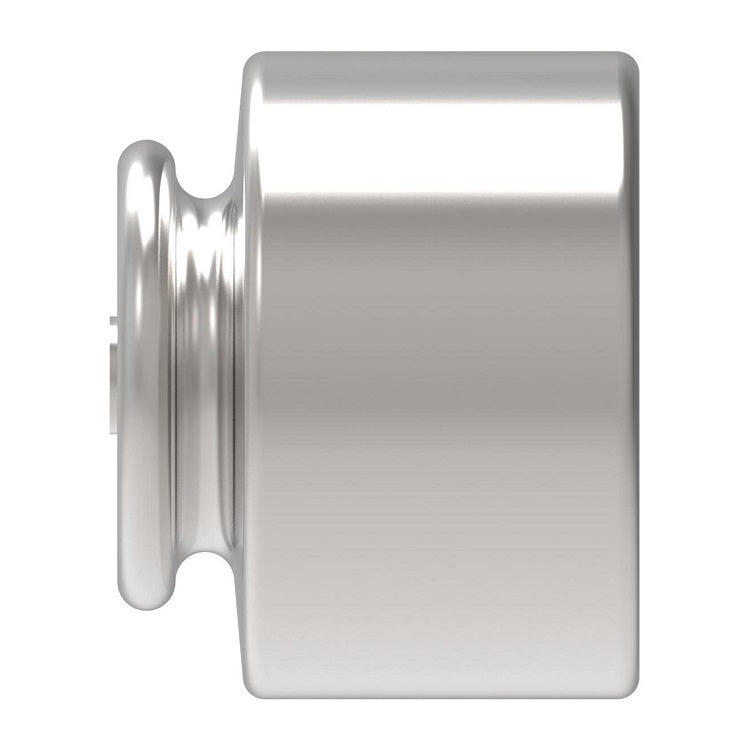

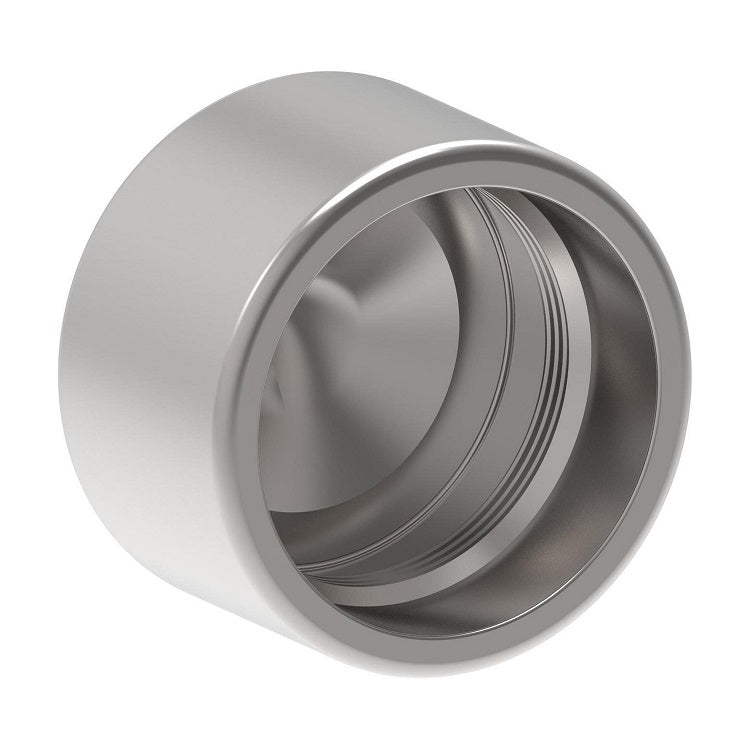

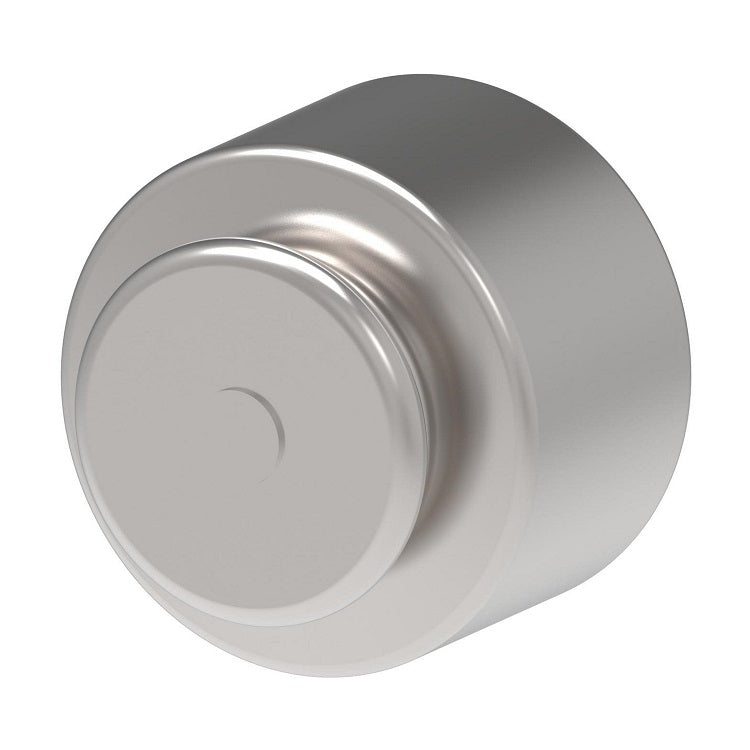

5100-32-24 Hansen® by Danfoss | Quick Disconnect Coupling | 5100 Series | Dust Cap without Chain | 1-1/2" Body Size | Steel

5100-32-24 Hansen® by Danfoss | Quick Disconnect Coupling | 5100 Series | Dust Cap without Chain | 1-1/2" Body Size | Steel

$72.34 - $72.34

$72.34

$72.34 - $72.34

$72.34

Hansen® by Danfoss
5100 Series | Thread to Connect | Dust Cap

Fluid Transfer and Hydraulic Quick Disconnect Coupling

Danfoss Hansen 5100 Series brass coupling with steel tubular valve offers minimum air inclusion and fluid loss.

Specifications for Variant SKU: 5100-32-24 Danfoss
Brand:	Hansen
Series:	5100 Series
Shape (Orientation):	No Orientation
Material(s):	Zink-Plated Carbon Steel

Applications & Markets:	Hydraulics and Fluid Transfer On-highway Hydraulic Wet Lines Dump and Refuse Vehicles Bulk Liquid Transfer Note: The 5100 Series is not rated for continuous hydraulic impulse applications.
Materials:	Standard body material: carbon steel.

Dust Cap with Chain Part Number	Dust Plug with Chain Part Number	Dust Cap without Chain Part Number	Body Size
5100-S7-5	5100-S9-5	-	1/4"
5100-S7-8	5100-S9-8	5100-32-8	3/8" & 1/2"
5100-S7-12	5100-S9-12	5100-32-12	5/8" & 3/4"
5100-S7-16	5100-S9-16	5100-32-16	1"
5100-S7-20	5100-S9-20	5100-32-20	1-1/4"
5100-S7-24	5100-S9-24	5100-32-24	1-1/2"
