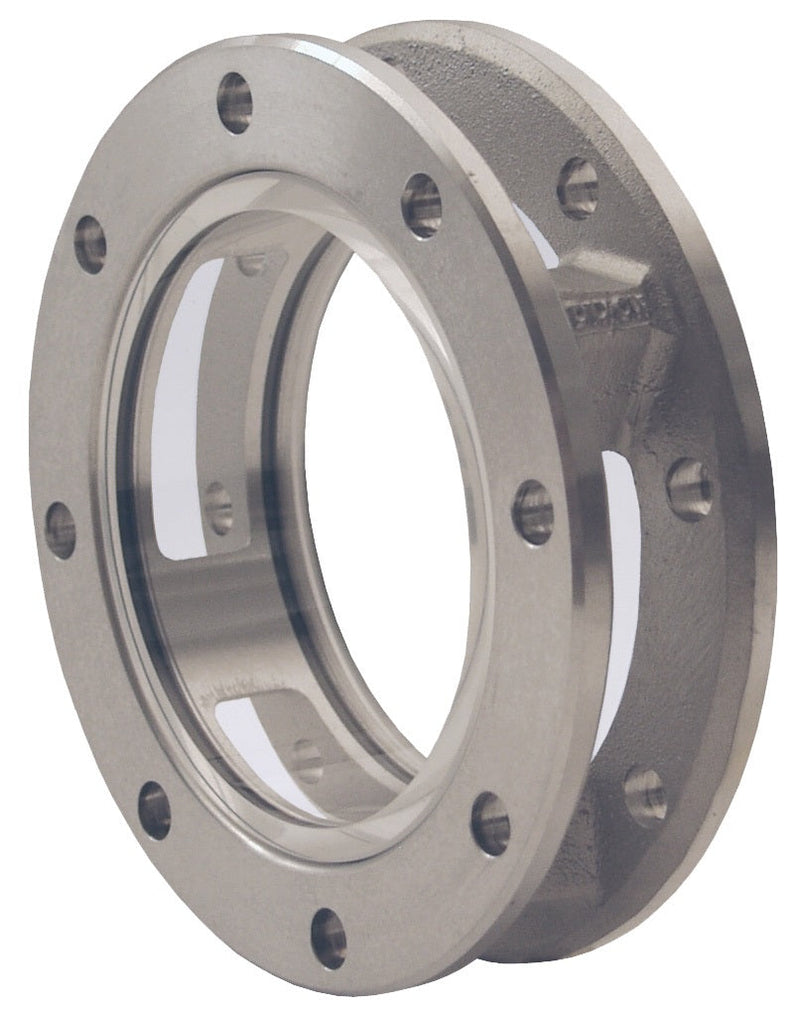

5200-SFI-3 by Dixon Valve | Sight Flow Indicator | TTMA Flanged (Short) | 3" Size | 1-3/4" Width | Aluminum

Save $12.24

$119.08

$119.08 - $119.08

$119.08

$106.84

$106.84 - $106.84

$106.84

Dixon Valve
Tank Truck | Sight Flow Indicator | TTMA Flanged (Short)

Allows for visual identification of the fuel grade prior to opening the valve.

Works with tank truck flanged butterfly valves found on gasoline trucks.

Quantity

Specifications for Variant SKU: 5200-SFI-3 Dixon
Brand:	Bayco
Shape (Orientation):	Straight
Ends Configuration:	3in TTMA Flange, 3in TTMA Flange, Some Ends Match
Material(s):	Aluminum

Features:
Low cost sight glass tube can be easily replaced.
Construction:
Durable cast aluminum housing, replaces competition's all-acrylic sight glass as commonly found on tank trucks. Durable cast aluminum housing. Acrylic sight glass. Baylast™ O-ring and retainer ring.
Specifications:
Maximum flange bolt torque is 200 in. lbs. Rated to 150 PSI
Safety Notes:
Due to the proprietary blending of petroleum products, Dixon recommends that the thermoplastic tubing and the gaskets be immersion tested in the product to be handled to ensure compatibility. Not compatible with crude oil.

Part Number	TTMA Flange Size	Width	Fuel Compatibility
5200-SFI-3	3"	1-3/4"	Gasoline and diesel, up to E100 and B100 biofuels
5200-SFI	4"	1-3/4"	Gasoline and diesel, up to E100 and B100 biofuels

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
