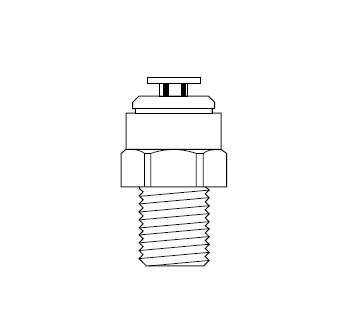

5201063 NEWLOC® by NewAge | Acetal Push-to-Connect Fitting | Male Adapter | 0.250" Tube OD x 0.125" Male NPT | Bag of 10

Save $11.20

$28.00

$28.00 - $28.00

$28.00

$16.80

$16.80 - $16.80

$16.80

PRODUCT DESCRIPTION

NewAge Industries - NEWLOC® Acetal Push-to-Connect Fittings - Adapters - Male Adapters

Package Quantity: 10 EA

Specifications for Variant SKU: 5201063 NewAge \| 10 \|
Brand:	NEWLOC
Shape (Orientation):	Straight
Ends Configuration:	1/4in Push-to-Connect, 1/8in Male NPT
Material(s):	Acetal
Applicable Specs & Approvals:	NSF 51, NSF 61, Applicable FDA Requirements

Features:
Extremely easy to install -- no tools necessary Listed by the National Sanitation Foundation (NSF-51 & NSF-61)^ Instant leak-proof connections Made from tough, lightweight, FDA-sanctioned materials No flow restrictions Easy to disconnect and reuse Available in either Fractional or Metric sizes Optional collet cover to prevent accidental disconnection and to deter tampering -- available in colors for coding purposes Genuine John Guest brand fittings
Notes:
Construction materials: Body: Acetal copolymer (fractions are grey; metrics are black) 'O'-Ring: FDA-grade nitrile rubber Collet: Acetal copolymer with stainless steel teeth Collet cover: Acetal copolymer Working pressure: Up to 230 psi (air and potable liquids) Vacuum rating: Full (29.9 in./Hg) Working temperature: -4°F to 158°F (air); 33°F to 158°F (potable liquids) Use NEWLOC fittings with all types of semi-rigid to rigid plastic tubing including nylon and polyethylene. They can also be used in limited soft tubing sizes using tube supports - testing is recommended.Typical applications include systems for pneumatic control, food and beverage, chemicals, and potable water. NEWLOC's ends are self-sealing -- do not use sealants such as PTFE tape. If tube & fitting are disconnected, it may be necessary to re-cut the end of the tubing to ensure perfect sealing when reattached.

**These values are meant only as a guide to aid in design. Field testing should be performed to find the actual values for the application.

Part Number	Dimensions (Tube OD x Thread)
5201035	0.188" x 0.125" Male MNPT
5201063	0.250" x 0.125" Male MNPT
5201091	0.250" x 0.250" Male MNPT
5201098	0.250" x 0.375" Male MNPT
5201119	0.313" x 0.125" Male MNPT
5201147	0.313" x 0.250" Male MNPT
5201175	0.313" x 0.375" Male MNPT
5201203	0.375" x 0.125" Male MNPT
5201231	0.375" x 0.250" Male MNPT
5201259	0.375" x 0.375" Male MNPT
5201287	0.375" x 0.500" Male MNPT
5201315	0.500" x 0.375" Male MNPT
5201343	0.500" x 0.500" Male MNPT
Metric Sizes

* Limited stock item; lead times and minimums may apply --contact support.
^NSF listed as trade designation "JG"
