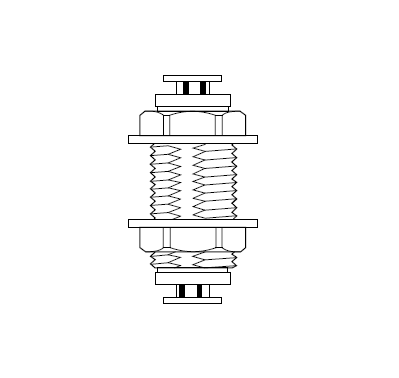

5202603 NEWLOC® by NewAge | Acetal Push-to-Connect Fitting | Bulkhead Union Straight Connector | 0.375" Tube OD | Bag of 10

5202603 NEWLOC® by NewAge | Acetal Push-to-Connect Fitting | Bulkhead Union Straight Connector | 0.375" Tube OD | Bag of 10

Save $2.42 Save $2.42
$61.89
$61.89 - $61.89
$61.89
$59.47
$59.47 - $59.47
$59.47

PRODUCT DESCRIPTION

NewAge Industries - NEWLOC® Acetal Push-to-Connect Fittings - Straight Connectors - Bulkhead Union

Package Quantity: 10 EA

Specifications for Variant SKU: 5202603 NewAge | 10 |
Brand: NEWLOC
Shape (Orientation): Straight
Ends Configuration: 3/8in Push-to-Connect, 3/8in Push-to-Connect, Some Ends Match
Material(s): Acetal
Applicable Specs & Approvals: NSF 51, NSF 61, Applicable FDA Requirements
Features:
  • Extremely easy to install -- no tools necessary
  • Listed by the National Sanitation Foundation (NSF-51 & NSF-61)^
  • Instant leak-proof connections
  • Made from tough, lightweight, FDA-sanctioned materials
  • No flow restrictions
  • Easy to disconnect and reuse
  • Available in either Fractional or Metric sizes
  • Optional collet cover to prevent accidental disconnection and to deter tampering -- available in colors for coding purposes
  • Genuine John Guest brand fittings
Notes:
  • Construction materials:
    • Body: Acetal copolymer (fractions are grey; metrics are black)
    • 'O'-Ring: FDA-grade nitrile rubber
    • Collet: Acetal copolymer with stainless steel teeth
    • Collet cover: Acetal copolymer
  • Working pressure: Up to 230 psi (air and potable liquids)**
  • Vacuum rating: Full (29.9 in./Hg)**
  • Working temperature: -4°F to 158°F (air)**; 33°F to 158°F (potable liquids)**
  • Use NEWLOC fittings with all types of semi-rigid to rigid plastic tubing including nylon and polyethylene. They can also be used in limited soft tubing sizes using tube supports - testing is recommended. Typical applications include systems for pneumatic control, food and beverage, chemicals, and potable water.
  • NEWLOC's ends are self-sealing -- do not use sealants such as PTFE tape.
  • If tube & fitting are disconnected, it may be necessary to re-cut the end of the tubing to ensure perfect sealing when reattached.

**These values are meant only as a guide to aid in design. Field testing should be performed to find the actual values for the application.

Part Number Dimensions (Tube OD)
5202547 0.25"
5202603 0.375"

^NSF listed as trade designation "JG".
