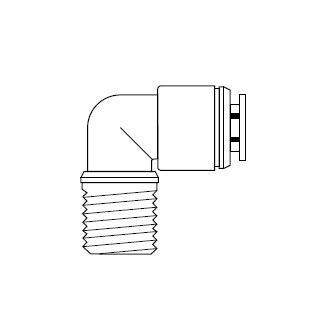

5203338 NEWLOC® by NewAge | Acetal Push-to-Connect Fitting | Male 90 deg. Elbow | 0.250" Male NPT x 0.250" Tube OD | Bag of 10

5203338 NEWLOC® by NewAge | Acetal Push-to-Connect Fitting | Male 90° Elbow | 0.250" Male NPT x 0.250" Tube OD | Bag of 10

Save $1.11

$28.44

$28.44 - $28.44

$28.44

$27.33

$27.33 - $27.33

$27.33

PRODUCT DESCRIPTION

NewAge Industries - NEWLOC® Acetal Push-to-Connect Fittings - 90° Male Elbow

Package Quantity: 10 EA

Quantity

Specifications for Variant SKU: 5203338 NewAge \| 10 \|
Brand:	NEWLOC
Shape (Orientation):	90 Degree
Ends Configuration:	1/4in Male NPT, 1/4in Push-to-Connect
Material(s):	Acetal
Applicable Specs & Approvals:	NSF 51, NSF 61, Applicable FDA Requirements

Features:
Extremely easy to install -- no tools necessary Listed by the National Sanitation Foundation (NSF-51 & NSF-61)^ Instant leak-proof connections Made from tough, lightweight, FDA-sanctioned materials No flow restrictions Easy to disconnect and reuse Available in either Fractional or Metric sizes Optional collet cover to prevent accidental disconnection and to deter tampering -- available in colors for coding purposes Genuine John Guest brand fittings
Notes:
Construction materials: Body: Acetal copolymer (fractions are grey; metrics are black) 'O'-Ring: FDA-grade nitrile rubber Collet: Acetal copolymer with stainless steel teeth Collet cover: Acetal copolymer Working pressure: Up to 230 psi (air and potable liquids) Vacuum rating: Full (29.9 in./Hg) Working temperature: -4°F to 158°F (air); 33°F to 158°F (potable liquids) Use NEWLOC fittings with all types of semi-rigid to rigid plastic tubing including nylon and polyethylene. They can also be used in limited soft tubing sizes using tube supports - testing is recommended.Typical applications include systems for pneumatic control, food and beverage, chemicals, and potable water. NEWLOC's ends are self-sealing -- do not use sealants such as PTFE tape. If tube & fitting are disconnected, it may be necessary to re-cut the end of the tubing to ensure perfect sealing when reattached.

**These values are meant only as a guide to aid in design. Field testing should be performed to find the actual values for the application.

Part Number	Dimensions (Tube OD x Thread)
5203331	0.250" x 0.125" Male MNPT
5203338	0.250" x 0.250" Male MNPT
5203387	0.375" x 0.250" Male MNPT

^NSF listed as trade designation "JG".

NewAge Industries

NewAge Industries is a leading independent, employee-owned manufacturer of fluid transfer systems that produce high-quality tubing, hose, fittings, clamps, and accessories and offers expert project guidance and services.

As a reliable provider that offers an exceptional customer experience, a culture of social responsibility, and a focus on sustainability, NewAge helps businesses engineer products that create a positive global impact.
