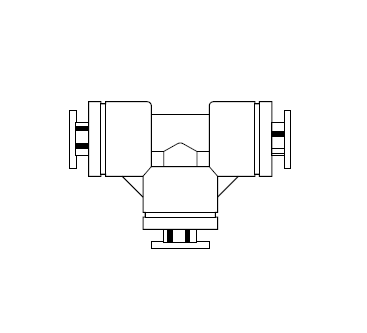

5204759 NEWLOC® by NewAge | Acetal Push-to-Connect Fitting | Union Tee Connector | 0.313" Tube OD | Bag of 10

Save $1.69

$40.89

$40.89 - $40.89

$40.89

$39.20

$39.20 - $39.20

$39.20

PRODUCT DESCRIPTION

NewAge Industries - NEWLOC® Acetal Push-to-Connect Fittings - Union Tee

Package Quantity: 10 EA

Quantity

Specifications for Variant SKU: 5204759 NewAge \| 10 \|
Brand:	NEWLOC
Shape (Orientation):	Tee
Ends Configuration:	5/16in Push-to-Connect, 5/16in Push-to-Connect, 5/16in Push-to-Connect, Some Ends Match
Material(s):	Acetal
Applicable Specs & Approvals:	NSF 51, NSF 61, Applicable FDA Requirements

Features:
Extremely easy to install -- no tools necessary Listed by the National Sanitation Foundation (NSF-51 & NSF-61)^ Instant leak-proof connections Made from tough, lightweight, FDA-sanctioned materials No flow restrictions Easy to disconnect and reuse Available in either Fractional or Metric sizes Optional collet cover to prevent accidental disconnection and to deter tampering -- available in colors for coding purposes Genuine John Guest brand fittings
Notes:
Construction materials: Body: Acetal copolymer (fractions are grey; metrics are black) 'O'-Ring: FDA-grade nitrile rubber Collet: Acetal copolymer with stainless steel teeth Collet cover: Acetal copolymer Working pressure: Up to 230 psi (air and potable liquids) Vacuum rating: Full (29.9 in./Hg) Working temperature: -4°F to 158°F (air); 33°F to 158°F (potable liquids) Use NEWLOC fittings with all types of semi-rigid to rigid plastic tubing including nylon and polyethylene. They can also be used in limited soft tubing sizes using tube supports - testing is recommended.Typical applications include systems for pneumatic control, food and beverage, chemicals, and potable water. NEWLOC's ends are self-sealing -- do not use sealants such as PTFE tape. If tube & fitting are disconnected, it may be necessary to re-cut the end of the tubing to ensure perfect sealing when reattached.

**These values are meant only as a guide to aid in design. Field testing should be performed to find the actual values for the application.

Part Number	Dimensions (Tube OD)
5204731	0.25"
5204759	0.313"
5204787	0.375"
5204815	0.5"
Metric Sizes

* Limited stock item; lead times and minimums may apply -- contact support
^NSF listed as trade designation "JG"
