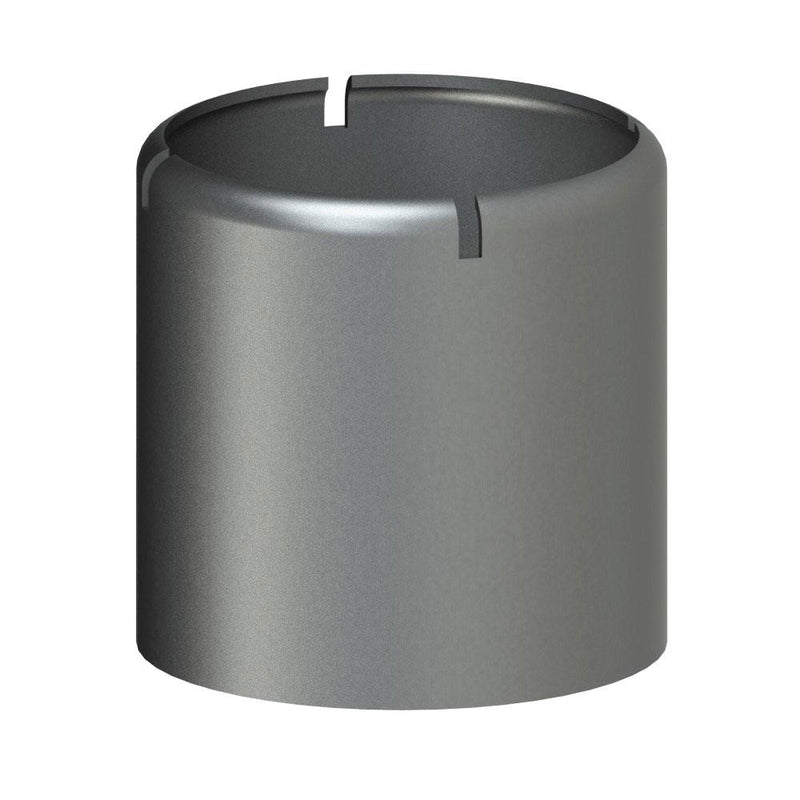

54015128 (15128C50CS) PROGRIP™ by PT-Coupling | Type C50CS | C50 External Crimp System | 1-1/2" Crimp Ferrule | 1.875" Ferrule ID | Plated Carbon Steel

54015128 (15128C50CS) PROGRIP™ by PT-Coupling | Type C50CS | C50 External Crimp System | 1-1/2" Crimp Ferrule | 1.875" Ferrule ID | Plated Carbon Steel

Save $3.52 Save $3.52
$9.47
$9.47 - $9.47
$9.47
$5.95
$5.95 - $5.95
$5.95

PT Coupling
PROGRIP™ | C50 External Crimp System | Type C50CS | Crimp Ferrule | Plated Carbon Steel

Made in the USA.
Specifications for Variant SKU: 54015128 PT-Coupling
Series: ProGrip C50 External Crimp System
Shape (Orientation): Straight
Material(s): Plated Carbon Steel
Overview:
  • PT Coupling manufactures ProGrip™ coupling retention systems for attaching hose to fittings, either by externally crimping or internally expanding. The fittings produced cover a wide range of applications including sanitary, pharmaceutical, chemical, petroleum, industrial, and fire protection. Various types of hose shank designs are utilized to maximize the performance of the different fittings and ferrule combinations. All of the different hose shanks are available with any type of the connecting ends. Ends available include male and female NPT Pipe, Victaulic® style groove, butt weld, socket weld, I-Line, Pacific Coast thread, tri-clamp and flanged.
Features & Applications:
  • Made in the USA
For use with:
  • C50 External Crimp System.
Part
Name		 Item # Size Ferrule ID
05028C50CS 54005028 1/2" 0.875"

07104C50CS 54007104 3/4" 1.125"
07106C50CS 54007106 3/4" 1.188"
07108C50CS 54007108 3/4" 1.250"
07110C50CS 54007110 3/4" 1.313"

10114C50CS 54010114 1" 1.438"
10116C50CS 54010116 1" 1.500"
10118C50CS 54010118 1" 1.563"
10120C50CS 54010120 1" 1.625"
10122C50CS 54010122 1" 1.688"
10126C50CS 54010126 1" 1.813"

12124C50CS 54012124 1-1/4" 1.750"
12126C50CS 54012126 1-1/4" 1.813"
12128C50CS 54012128 1-1/4" 1.875"
12130C50CS 54012130 1-1/4" 1.938"

15128C50CS 54015128 1-1/2" 1.875"
15130C50CS 54015130 1-1/2" 1.938"
15200C50CS 54015200 1-1/2" 2.000"
15202C50CS 54015202 1-1/2" 2.063"
15204C50CS 54015204 1-1/2" 2.125"
15206C50CS 54015206 1-1/2" 2.188"
15208C50CS 54015208 1-1/2" 2.250"
15212C50CS 54015212 1-1/2" 2.375"

20212C50CS 54020212 2" 2.375"
20214C50CS 54020214 2" 2.438"
20216C50CS 54020216 2" 2.500"
20218C50CS 54020218 2" 2.563"
20220C50CS 54020220 2" 2.625"
20222C50CS 54020222 2" 2.688"
20224C50CS 54020224 2" 2.750"
20226C50CS 54020226 2" 2.813"
20228C50CS 54020228 2" 2.875"
20230C50CS 54020230 2" 2.938"
20300C50CS 54020300 2" 3.000"

25228C50CS 54025228 2-1/2" 2.875"
25300C50CS 54025300 2-1/2" 3.000"
25302C50CS 54025302 2-1/2" 3.063"
25304C50CS 54025304 2-1/2" 3.125"
25306C50CS 54025306 2-1/2" 3.188"
25308C50CS 54025308 2-1/2" 3.250"
25314C50CS 54025314 2-1/2" 3.438"

30316C50CS 54030316 3" 3.500"
30318C50CS 54030318 3" 3.563"
30320C50CS 54030320 3" 3.625"
30322C50CS 54030322 3" 3.688"
30324C50CS 54030324 3" 3.750"
30326C50CS 54030326 3" 3.813"
30328C50CS 54030328 3" 3.875"
30330C50CS 54030330 3" 3.938"
30400C50CS 54030400 3" 4.000"

40412C50CS 54040412 4" 4.375"
40416C50CS 54040416 4" 4.500"
40418C50CS 54040418 4" 4.563"
40420C50CS 54040420 4" 4.625"
40422C50CS 54040422 4" 4.688"
40424C50CS 54040424 4" 4.750"
40426C50CS 54040426 4" 4.813"
40428C50CS 54040428 4" 4.875"
40430C50CS 54040430 4" 4.938"
40500C50CS 54040500 4" 5.000"
40502C50CS 54040502 4" 5.063"

50530C50CS 54050530 5" 5.938"

60620C50CS 54060620 6" 6.625"
60628C50CS 54060628 6" 6.875"
60700C50CS 54060700 6" 7.000"

It is recommended that hydrostatic testing be done to hose assemblies to assure the above crimp diameters are sufficient for the inten ded application. Reference the NAHAD Hose Safety Institute Hose Assembly Guidelines for recommended testing procedures. www.nahad.org

PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
