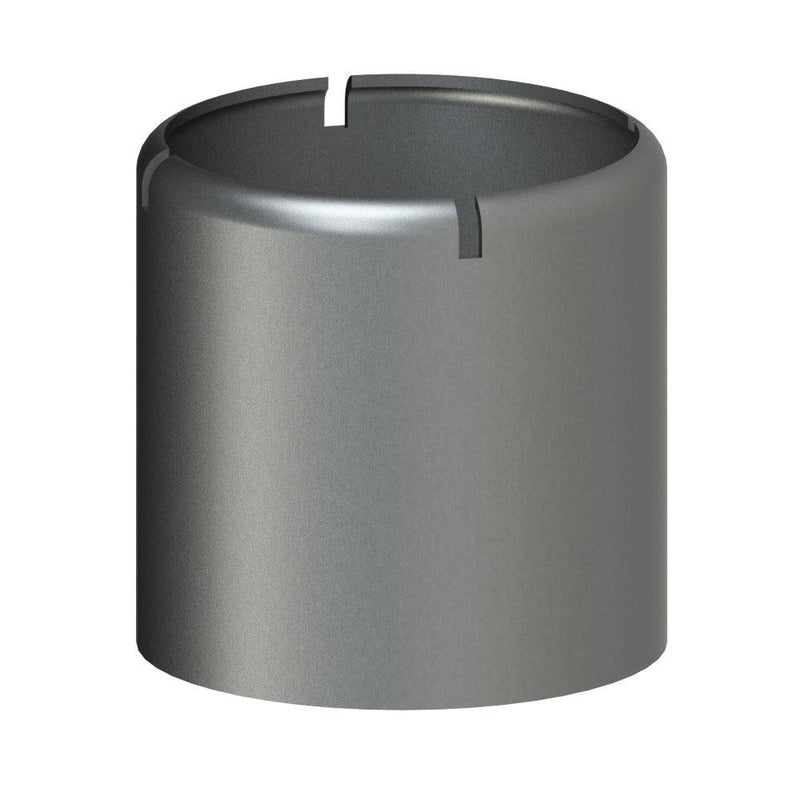

54020224 (20224C50CS) PROGRIP™ by PT-Coupling | Type C50CS | C50 External Crimp System | 2" Crimp Ferrule | 2.750" Ferrule ID | Plated Carbon Steel

Save $5.44

$14.68

$14.68 - $14.68

$14.68

$9.24

$9.24 - $9.24

$9.24

PT Coupling
PROGRIP™ | C50 External Crimp System | Type C50CS | Crimp Ferrule | Plated Carbon Steel

Made in the USA.

Specifications for Variant SKU: 54020224 PT-Coupling
Series:	ProGrip C50 External Crimp System
Shape (Orientation):	Straight
Material(s):	Plated Carbon Steel

Overview:
PT Coupling manufactures ProGrip™ coupling retention systems for attaching hose to fittings, either by externally crimping or internally expanding. The fittings produced cover a wide range of applications including sanitary, pharmaceutical, chemical, petroleum, industrial, and fire protection. Various types of hose shank designs are utilized to maximize the performance of the different fittings and ferrule combinations. All of the different hose shanks are available with any type of the connecting ends. Ends available include male and female NPT Pipe, Victaulic® style groove, butt weld, socket weld, I-Line, Pacific Coast thread, tri-clamp and flanged.
Features & Applications:
Made in the USA
For use with:
C50 External Crimp System.

Part Name	Item #	Size	Ferrule ID
05028C50CS	54005028	1/2"	0.875"

07104C50CS	54007104	3/4"	1.125"
07106C50CS	54007106	3/4"	1.188"
07108C50CS	54007108	3/4"	1.250"
07110C50CS	54007110	3/4"	1.313"

10114C50CS	54010114	1"	1.438"
10116C50CS	54010116	1"	1.500"
10118C50CS	54010118	1"	1.563"
10120C50CS	54010120	1"	1.625"
10122C50CS	54010122	1"	1.688"
10126C50CS	54010126	1"	1.813"

12124C50CS	54012124	1-1/4"	1.750"
12126C50CS	54012126	1-1/4"	1.813"
12128C50CS	54012128	1-1/4"	1.875"
12130C50CS	54012130	1-1/4"	1.938"

15128C50CS	54015128	1-1/2"	1.875"
15130C50CS	54015130	1-1/2"	1.938"
15200C50CS	54015200	1-1/2"	2.000"
15202C50CS	54015202	1-1/2"	2.063"
15204C50CS	54015204	1-1/2"	2.125"
15206C50CS	54015206	1-1/2"	2.188"
15208C50CS	54015208	1-1/2"	2.250"
15212C50CS	54015212	1-1/2"	2.375"

20212C50CS	54020212	2"	2.375"
20214C50CS	54020214	2"	2.438"
20216C50CS	54020216	2"	2.500"
20218C50CS	54020218	2"	2.563"
20220C50CS	54020220	2"	2.625"
20222C50CS	54020222	2"	2.688"
20224C50CS	54020224	2"	2.750"
20226C50CS	54020226	2"	2.813"
20228C50CS	54020228	2"	2.875"
20230C50CS	54020230	2"	2.938"
20300C50CS	54020300	2"	3.000"

25228C50CS	54025228	2-1/2"	2.875"
25300C50CS	54025300	2-1/2"	3.000"
25302C50CS	54025302	2-1/2"	3.063"
25304C50CS	54025304	2-1/2"	3.125"
25306C50CS	54025306	2-1/2"	3.188"
25308C50CS	54025308	2-1/2"	3.250"
25314C50CS	54025314	2-1/2"	3.438"

30316C50CS	54030316	3"	3.500"
30318C50CS	54030318	3"	3.563"
30320C50CS	54030320	3"	3.625"
30322C50CS	54030322	3"	3.688"
30324C50CS	54030324	3"	3.750"
30326C50CS	54030326	3"	3.813"
30328C50CS	54030328	3"	3.875"
30330C50CS	54030330	3"	3.938"
30400C50CS	54030400	3"	4.000"

40412C50CS	54040412	4"	4.375"
40416C50CS	54040416	4"	4.500"
40418C50CS	54040418	4"	4.563"
40420C50CS	54040420	4"	4.625"
40422C50CS	54040422	4"	4.688"
40424C50CS	54040424	4"	4.750"
40426C50CS	54040426	4"	4.813"
40428C50CS	54040428	4"	4.875"
40430C50CS	54040430	4"	4.938"
40500C50CS	54040500	4"	5.000"
40502C50CS	54040502	4"	5.063"

50530C50CS	54050530	5"	5.938"

60620C50CS	54060620	6"	6.625"
60628C50CS	54060628	6"	6.875"
60700C50CS	54060700	6"	7.000"

It is recommended that hydrostatic testing be done to hose assemblies to assure the above crimp diameters are sufficient for the inten ded application. Reference the NAHAD Hose Safety Institute Hose Assembly Guidelines for recommended testing procedures. www.nahad.org

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
