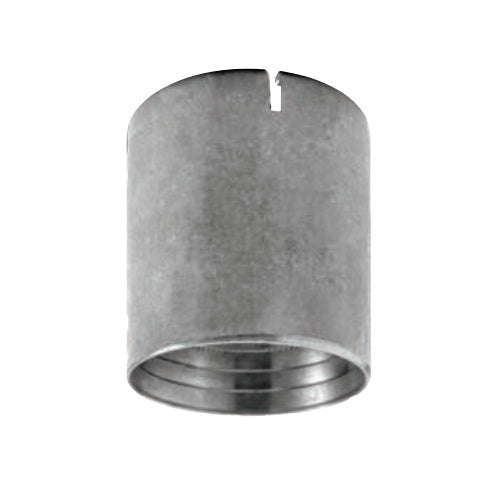

54030324H (30324C50HDCS) PROGRIP™ by PT-Coupling | Type C50HD | C50 External Crimp System | 3" Heavy Duty Crimp Ferrule | 3.750" Ferrule ID | Plated Carbon Steel

54030324H (30324C50HDCS) PROGRIP™ by PT-Coupling | Type C50HD | C50 External Crimp System | 3" Heavy Duty Crimp Ferrule | 3.750" Ferrule ID | Plated Carbon Steel

Save $23.02 Save $23.02
$62.02
$62.02 - $62.02
$62.02
$39.00
$39.00 - $39.00
$39.00

PT Coupling
PROGRIP™ | C50 External Crimp System | Type C50HD | Heavy Duty Crimp Ferrule | Plated Carbon Steel

Made in the USA.
Specifications for Variant SKU: 54030324H PT-Coupling
Series: ProGrip C50 External Crimp System
Shape (Orientation): Straight
Material(s): Plated Carbon Steel
Overview:
  • PT Coupling manufactures ProGrip™ coupling retention systems for attaching hose to fittings, either by externally crimping or internally expanding. The fittings produced cover a wide range of applications including sanitary, pharmaceutical, chemical, petroleum, industrial, and fire protection. Various types of hose shank designs are utilized to maximize the performance of the different fittings and ferrule combinations. All of the different hose shanks are available with any type of the connecting ends. Ends available include male and female NPT Pipe, Victaulic® style groove, butt weld, socket weld, I-Line, Pacific Coast thread, tri-clamp and flanged.
Features & Applications:
  • Made in the USA
For use with:
  • C50 External Crimp System
Part
Name		 Item # Size Ferrule ID
20222C50HDCS 54020222H 2" 2.688"
20228C50HDCS 54020228H 2" 2.875"

30322C50HDCS 54030322H 3" 3.688"
30324C50HDCS 54030324H 3" 3.750"

40422C50HDCS 54040422H 4" 4.688"
40424C50HDCS 54040424H 4" 4.750"
40502C50HDCS 54040502H 4" 5.063"

It is recommended that hydrostatic testing be done to hose assemblies to assure the above crimp diameters are sufficient for the intended application. Reference the NAHAD Hose Safety Institute Hose Assembly Guidelines for recommended testing procedures. www.nahad.org

PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
