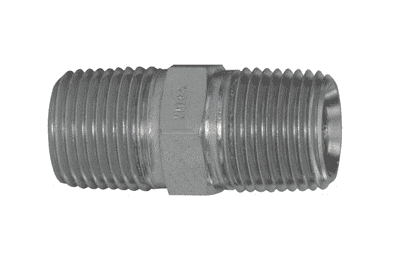

5404-4 Dixon Zinc Plated Steel Male NPTF Hex Pipe Nipple - 1/4"-18 Male NPTF Pipe x 1/4"-18 Male NPTF Pipe

5404-4 Dixon Valve Zinc Plated Steel Male NPTF Hex Pipe Nipple - 1/4"-18 Male NPTF Pipe x 1/4"-18 Male NPTF Pipe

Save $0.82 Save $0.82
$2.05
$2.05 - $2.05
$2.05
$1.23
$1.23 - $1.23
$1.23

NPT Fittings - Male NPTF Hex Pipe Nipples - Zinc Plated Steel
Specifications for Variant SKU: 5404-4 Dixon
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPTF, 1/4in Male NPTF, Some Ends Match
Material(s): Zink-Plated Steel
Features:
  • Reference SAE 140137.
Part Number Male NPTF Pipe Male NPTF Pipe Working Pressure Weight (Lbs.)
5404-2 1/8"-27 1/8"-27 5000 PSI 0.0300
5404-4 1/4"-18 1/4"-18 5000 PSI 0.0650
5404-6 3/8"-18 3/8"-18 4000 PSI 0.0900
5404-6-4 3/8"-18 1/4"-18 4000 PSI 0.1000
5404-8 1/2"-14 1/2"-14 3000 PSI 0.1000
5404-8-6 1/2"-14 3/8"-18 3000 PSI 0.1550
5404-12 3/4"-14 3/4"-14 2500 PSI 0.2600
5404-12-8 3/4"-14 1/2"-14 2500 PSI 0.2770
5404-16 1"-11-1/2 1"-11-1/2 2000 PSI 0.4000
5404-16-12 1"-11-1/2 3/4"-14 2000 PSI 0.4360
5404-20 1-1/4"-11-1/2 1-1/4"-11-1/2 1150 PSI 0.6300
