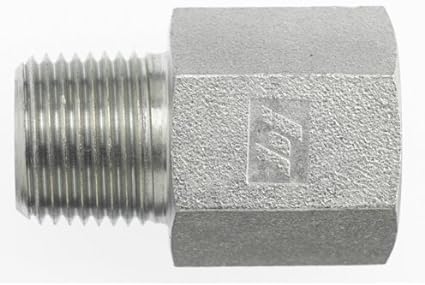

5405-24-32 by Brennan Inc. | -24 Male Pipe x -32 Female Pipe | Straight | Expander | Steel

5405-24-32 by Brennan Inc. | -24 Male Pipe x -32 Female Pipe | Straight | Expander | Steel

$71.47 - $71.47
$71.47
$90.69
$90.69 - $90.69
$90.69

Brennan Inc.
Tube Fittings & Adapters: 5405 - Male Pipe x Female Pipe Straight Expander
Specifications for Variant SKU: 5405-24-32 Brennan
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Male NPTF, 2in Female NPTF, Some Ends Match
Material(s): Steel
Part Number Material A1 NPTF A2 NPTF A1 Drill L Length C Hex
5405-02-04 Steel 1/8-27" 1/4-18" 0.188" 1.210" 0.750"
5405-04-08 Steel 1/4-18" 1/2-14" 0.281" 1.68" 1.125"
5405-06-06-BLANK Steel - - - - -
5405-06-08 Steel 3/8-18" 1/2-14" 0.406" 1.68" 1.125"
5405-08-12 Steel 1/2-14" 3/4-14" 0.531" 1.93" 1.375"
5405-08-16 Steel 1/2-14" 1-11-1/2" 0.531" 2.18" 1.625"
5405-12-04 Steel 3/4-14" 1/4-18" 0.719" 1.600" 1.125"
5405-12-06 Steel 3/4-14" 3/8-18" 0.571" 1.66" 1.125"
5405-12-08 Steel 3/4-14" 1/2-14" 0.719" 1.930" 1.125"
5405-12-12 Steel 3/4-14" 3/4-14" 0.719" 1.93" 1.375"
5405-16-08 Steel 1-11-1/2" 1/2-14" 0.697" 2.080" 1.375"
5405-16-12 Steel 1-11-1/2" 3/4-14" 0.938" 2.120" 1.375"
5405-16-16 Steel 1-11-1/2" 1-11-1/2" 0.938" 2.370" 1.625"
5405-16-20 Steel 1-11-1/2" 1-1/4-11-1/2" 0.938" 2.46" 2.000"
5405-16-24 Steel 1-11-1/2" 1-1/2-11-1/2" 0.938" 2.460" 2.375"
5405-20-20 Steel 1-1/4-11-1/2" 1-1/4-11-1/2" 1.250" 2.49" 2.000"
5405-20-24 Steel 1-1/4-11-1/2" 1-1/2-11-1/2" 1.250" 2.500" 2.375"
5405-20-32 Steel 1-1/4-11-1/2" 2-11-1/2" 1.250" 2.600" 2.875"
5405-24-20 Steel 1-1/2-11-1/2" 1-1/4-11-1/2" 1.500" 2.540" 2.000"
5405-24-24 Steel 1-1/2-11-1/2" 1-1/2-11-1/2" 1.500" 2.530" 2.375"
5405-24-32 Steel 1-1/2-11-1/2" 2-11-1/2" 1.500" 2.630" 2.875"
5405-32-32 Steel 2-11-1/2" 2-11-1/2" 1.938" 2.660" 2.875"

5405-02-02-B Brass 1/8-27" 1/8-27" 0.188" 1.04" 0.625"
5405-02-04-B Brass 1/8-27" 1/4-18" 0.188" 1.210" 0.750"
5405-04-04-B Brass 1/4-18" 1/4-18" 0.281" 1.390" 0.750"
5405-04-06-B Brass 1/4-18" 3/8-18" 0.312" 1.250" 0.875"
5405-04-08-B Brass 1/4-18" 1/2-14" 0.281" 1.68" 1.125"
5405-06-06-B Brass 3/8-18" 3/8-18" 0.440" 1.44" 0.875"
5405-06-08-B Brass 3/8-18" 1/2-14" 0.406" 1.68" 1.125"
5405-08-08-B Brass 1/2-14" 1/2-14" 0.531" 1.87" 1.125"

5405-02-02-SS Stainless Steel 1/8-27" 1/8-27" 0.188" 1.04" 0.625"
5405-02-04-SS Stainless Steel 1/8-27" 1/4-18" 0.188" 1.210" 0.750"
5405-02-06-SS Stainless Steel 1/8-27" 3/8-18" 0.188" 1.260" 0.875"
5405-04-04-SS Stainless Steel 1/4-18" 1/4-18" 0.281" 1.390" 0.750"
5405-04-06-SS Stainless Steel 1/4-18" 3/8-18" 0.281" 1.440" 0.875"
5405-04-08-SS Stainless Steel 1/4-18" 1/2-14" 0.281" 1.68" 1.125"
5405-04-12-SS Stainless Steel 1/4-18" 3/4-14" 0.281" 1.74" 1.375"
5405-06-04-SS Stainless Steel 3/8-18" 1/4-18" 0.406" 1.440" 0.750"
5405-06-06-SS Stainless Steel 3/8-18" 3/8-18" 0.406" 1.44" 0.875"
5405-06-08-SS Stainless Steel 3/8-18" 1/2-14" 0.406" 1.68" 1.125"
5405-06-12-SS Stainless Steel 3/8-18" 3/4-14" 0.406" 1.74" 1.375"
5405-08-08-SS Stainless Steel 1/2-14" 1/2-14" 0.531" 1.87" 1.125"
5405-08-12-SS Stainless Steel 1/2-14" 3/4-14" 0.531" 1.93" 1.375"
5405-08-16-SS Stainless Steel 1/2-14" 1-11-1/2" 0.531" 2.18" 1.625"
5405-12-08-SS Stainless Steel 3/4-14" 1/2-14" 0.719" 1.930" 1.125"
5405-12-12-SS Stainless Steel 3/4-14" 3/4-14" 0.719" 1.93" 1.375"
5405-12-16-SS Stainless Steel 3/4-14" 1-11-1/2" 0.719" 2.180" 1.625"
5405-16-16-SS Stainless Steel 1-11-1/2" 1-11-1/2" 0.938" 2.370" 1.625"
5405-16-20-SS Stainless Steel 1-11-1/2" 1-1/4-11-1/2" 0.938" 2.46" 2.000"
5405-20-24-SS Stainless Steel 1-1/4-11-1/2" 1-1/2-11-1/2" 1.250" 2.500" 2.375"
