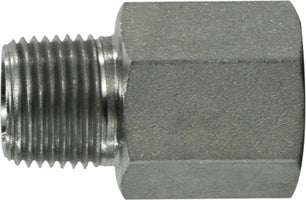

540522 (5405-2-2) Midland Hydraulic Expanding Pipe Adapter - 1/8" Male Pipe x 1/8" Female Pipe - Steel

540522 by Midland | Hydraulic Expanding Pipe | 1/8" Male Pipe x 1/8" Female Pipe | Adapter | Steel

Save $0.24 Save $0.24
$2.17
$2.17 - $2.17
$2.17
$1.93
$1.93 - $1.93
$1.93

Midland Industries
Hydraulic Adapters: Expanding Pipe Adapter - Steel

Inventory @ Manufacturers Warehouse: 1012 Units
Specifications for Variant SKU: 540522 Midland
Shape (Orientation): Straight
Ends Configuration: 1/8in Male NPT, 1/8in Female NPT
Material(s): Steel
Applicable Specs & Approvals: Applicable SAE Standards
Specifications:
  • SAE 140139
Technical Info:
Crossover Series:
920 5405 2040 FG-(R) 1274 C3209(R)
Part Number Male Pipe
(1)		 Male Pipe
(2)
540522
(5405-2-2) 		1/8" 1/8"
540524
(5405-2-4) 		1/8" 1/4"
540526 1/8" 3/8"
540528 1/8" 1/2"
540542
(5405-4-2) 		1/4" 1/8"
540544
(5405-4-4) 		1/4" 1/4"
540548 1/4" 1/2"
5405412 1/4" 3/4"
540564
(5405-6-4) 		3/8" 1/4"
540566
(5405-6-6) 		3/8" 3/8"
540568
(5405-6-8) 		3/8" 1/2"
5405612 3/8" 3/4"
540588
(5405-8-8)		 1/2" 1/2"
5405812
(5405-8-12)		 1/2" 3/4"
5405816 1/2" 1"
54051212
(5405-12-12)		 3/4" 3/4"
54051216 3/4" 1"
54051220 3/4" 1-1/4"
54051616
(5405-16-16) 		1" 1"
54051620
(5405-16-20) 		1" 1-1/4"
54052020
(5405-20-20)		 1-1/4" 1-1/4"
54052024
(5405-20-24)		 1-1/4" 1-1/2"
54052424
(5405-24-24)		 1-1/2" 1-1/2"
54052432 1-1/2" 2"
54053232 2" 2"
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
