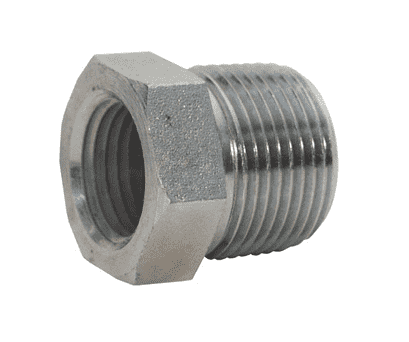

5406-32-8 Dixon Zinc Plated Steel 2"-11-1/2" Male NPTF x 1/2"-14 Female NPTF Hex Reducer Bushing

5406-32-8 Dixon Valve Zinc Plated Steel 2"-11-1/2" Male NPTF x 1/2"-14 Female NPTF Hex Reducer Bushing

Save $7.94 Save $7.94
$71.43
$71.43 - $71.43
$71.43
$63.49
$63.49 - $63.49
$63.49

NPT Fittings - Male NPTF x Female NPTF Hex Reducer Bushings - Zinc Plated Steel
Specifications for Variant SKU: 5406-32-8 Dixon
Shape (Orientation): Straight
Ends Configuration: 2in Male NPTF, 1/2in Female NPTF
Material(s): Zink-Plated Steel
Features:
  • N/A
Part Number Male NPTF Pipe Female NPTF Pipe Working Pressure Weight (Lbs.)
5406-4-2 1/4"-18 1/8"-27 5000 PSI 0.0400
5406-6-2 3/8"-18 1/8"-27 4000 PSI 0.0600
5406-6-4 3/8"-18 1/4"-18 4000 PSI 0.0300
5406-8-2 1/2"-14 1/8"-27 3000 PSI 0.1200
5406-8-4 1/2"-14 1/4"-18 3000 PSI 0.0800
5406-8-6 1/2"-14 3/8"-18 3000 PSI 0.0800
5406-12-2 3/4"-14 1/8"-27 2500 PSI 0.2200
5406-12-4 3/4"-14 1/4"-18 2500 PSI 0.2000
5406-12-6 3/4"-14 3/8"-18 2500 PSI 0.1800
5406-12-8 3/4"-14 1/2"-14 2500 PSI 0.1400
5406-16-4 1"-11-1/2 1/4"-18 2000 PSI 0.4400
5406-16-6 1"-11-1/2 3/8"-18 2000 PSI 0.3400
5406-16-8 1"-11-1/2 1/2"-14 2000 PSI 0.2300
5406-16-12 1"-11-1/2 3/4"-14 2000 PSI 0.1700
5406-20-6 1-1/4"-11-1/2 3/8"-18 1150 PSI 0.7910
5406-20-8 1-1/4"-11-1/2 1/2"-14 1150 PSI 0.7200
5406-20-12 1-1/4"-11-1/2 3/4"-14 1150 PSI 0.6000
5406-20-16 1-1/4"-11-1/2 1"-11-1/2 1150 PSI 0.4290
5406-24-8 1-1/2"-11-1/2 1/2"-14 1000 PSI 1.0800
5406-24-12 1-1/2"-11-1/2 3/4"-14 1000 PSI 0.9800
5406-24-16 1-1/2"-11-1/2 1"-11-1/2 1000 PSI 0.8000
5406-24-20 1-1/2"-11-1/2 1-1/4"-11-1/2 1000 PSI 0.4760
5406-32-8 2"-11-1/2" 1/2"-14 1000 PSI 1.7500
5406-32-12 2"-11-1/2" 3/4"-14 1000 PSI 1.9400
5406-32-16 2"-11-1/2" 1"-11-1/2 1000 PSI 1.7600
5406-32-20 2"-11-1/2" 1-1/4"-11-1/2 1000 PSI 1.3750
5406-32-24 2"-11-1/2" 1-1/2"-11-1/2 1000 PSI 1.1000
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
