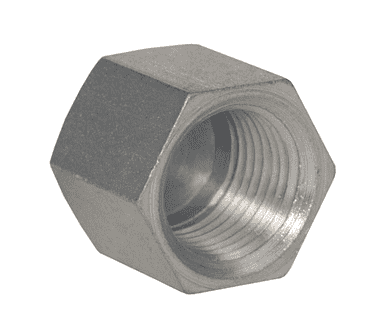

5406C-16 Dixon Zinc Plated Steel Female NPTF Hex Cap - 1"-11-1/2 Female NPTF Pipe

5406C-16 Dixon Valve Zinc Plated Steel Female NPTF Hex Cap - 1"-11-1/2 Female NPTF Pipe

Save $6.17 Save $6.17
$15.42
$15.42 - $15.42
$15.42
$9.25
$9.25 - $9.25
$9.25

NPT Fittings - Female NPTF Hex Caps - Zinc Plated Steel
Specifications for Variant SKU: 5406C-16 Dixon
Ends Configuration: 1in Female NPTF, 1in Female NPTF, Some Ends Match
Material(s): Zink-Plated Steel
Features:
  • N/A
Part Number Female NPTF Pipe Working Pressure Weight (Lbs.)
5406C-2 1/8"-27 5000 PSI 0.0750
5406C-4 1/4"-18 5000 PSI 0.1000
5406C-6 3/8"-18 4000 PSI 0.1220
5406C-8 1/2"-14 3000 PSI 0.3200
5406C-12 3/4"-14 2500 PSI 0.4090
5406C-16 1"-11-1/2 2000 PSI 0.6400
5406C-20 1-1/4"-11-1/2 1150 PSI 0.6800
5406C-24 1-1/2"-11-1/2 1000 PSI 0.8300
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
