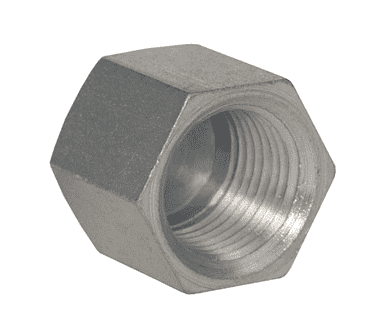

5406C-20 Dixon Zinc Plated Steel Female NPTF Hex Cap - 1-1/4"-11-1/2 Female NPTF Pipe

5406C-20 Dixon Valve Zinc Plated Steel Female NPTF Hex Cap - 1-1/4"-11-1/2 Female NPTF Pipe

Save $3.94 Save $3.94
$39.40
$39.40 - $39.40
$39.40
$35.46
$35.46 - $35.46
$35.46

NPT Fittings - Female NPTF Hex Caps - Zinc Plated Steel
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 5406C-20 Dixon
Ends Configuration: 1-1/4in Female NPTF, 1-1/4in Female NPTF, Some Ends Match
Material(s): Zink-Plated Steel
Features:
  • N/A
Part Number Female NPTF Pipe Working Pressure Weight (Lbs.)
5406C-2 1/8"-27 5000 PSI 0.0750
5406C-4 1/4"-18 5000 PSI 0.1000
5406C-6 3/8"-18 4000 PSI 0.1220
5406C-8 1/2"-14 3000 PSI 0.3200
5406C-12 3/4"-14 2500 PSI 0.4090
5406C-16 1"-11-1/2 2000 PSI 0.6400
5406C-20 1-1/4"-11-1/2 1150 PSI 0.6800
5406C-24 1-1/2"-11-1/2 1000 PSI 0.8300
