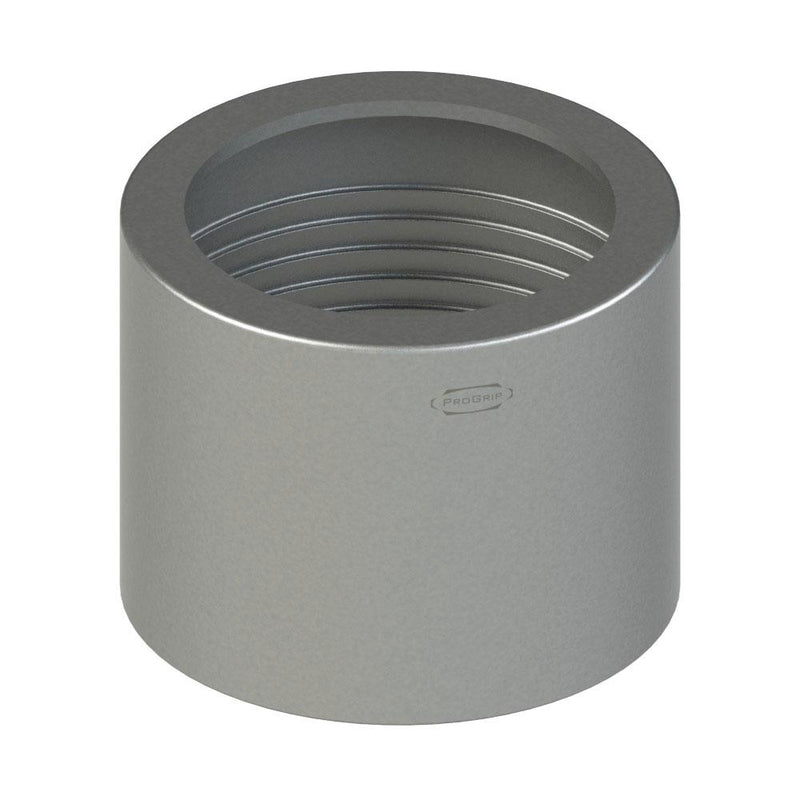

54115200P (15200SFC50) PROGRIP™ by PT-Coupling | Type SFC50 | Sanitary C50 Crimp Ferrule | 1-1/2" Size | 2.000" Ferrule ID | 304 Stainless Steel

54115200P (15200SFC50) PROGRIP™ by PT-Coupling | Type SFC50 | Sanitary C50 Crimp Ferrule | 1-1/2" Size | 2.000" Ferrule ID | 304 Stainless Steel

Save $34.82 Save $34.82
$93.82
$93.82 - $93.82
$93.82
$59.00
$59.00 - $59.00
$59.00

PT Coupling
PROGRIP™ | Sanitary C50 Crimp System | Type SFC50 | Sanitary C50 Crimp Ferrule | 304 Stainless Steel

Made in the USA.
Specifications for Variant SKU: 54115200P PT-Coupling
Series: ProGrip C50 Crimp System
Shape (Orientation): Straight
Material(s): 304 Stainless Steel
Overview:
  • PT Coupling manufactures ProGrip™ coupling retention systems for attaching hose to fittings, either by externally crimping or internally expanding. The fittings produced cover a wide range of applications including sanitary, pharmaceutical, chemical, petroleum, industrial, and fire protection. Various types of hose shank designs are utilized to maximize the performance of the different fittings and ferrule combinations. All of the different hose shanks are available with any type of the connecting ends. Ends available include male and female NPT Pipe, Victaulic® style groove, butt weld, socket weld, I-Line, Pacific Coast thread, tri-clamp and flanged.
Features & Applications:
  • Designed to be used with C50 Sanitary Bodies. Can be used in place of SE Ferrules.
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA
Part
Name		 Item # Size Ferrule ID
07110SFC50 54107110P 3/4" 1.313"

10116SFC50 54110116P 1" 1.500"
10118SFC50 54110118P 1" 1.563"
10120SFC50 54110120P 1" 1.625"

15128SFC50 54115128P 1-1/2" 1.875"
15200SFC50 54115200P 1-1/2" 2.000"
15202SFC50 54115202P 1-1/2" 2.063"
15204SFC50 54115204P 1-1/2" 2.125"
15206SFC50 54115206P 1-1/2" 2.188"
15208SFC50 54115208P 1-1/2" 2.250"

20214SFC50 54120214P 2" 2.438"
20216SFC50 54120216P 2" 2.500"
20218SFC50 54120218P 2" 2.563"
20220SFC50 54120220P 2" 2.625"
20222SFC50 54120222P 2" 2.688"
20224SFC50 54120224P 2" 2.750"
20226SFC50 54120226P 2" 2.813"
20230SFC50 54120230P 2" 2.938"

25304SFC50 54125304P 2-1/2" 3.125"
25308SFC50 54125308P 2-1/2" 3.250"
25320SFC50 54125320P 2-1/2" 3.625"

30322SFC50 54130322P 3" 3.688"
30324SFC50 54130324P 3" 3.750"
30326SFC50 54130326P 3" 3.813"
30328SFC50 54130328P 3" 3.875"
30330SFC50 54130330P 3" 3.938"

40422SFC50 54140422P 4" 4.688"
40426SFC50 54140426P 4" 4.813"
40428SFC50 54140428P 4" 4.875"
40500SFC50 54140500P 4" 5.000"

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
