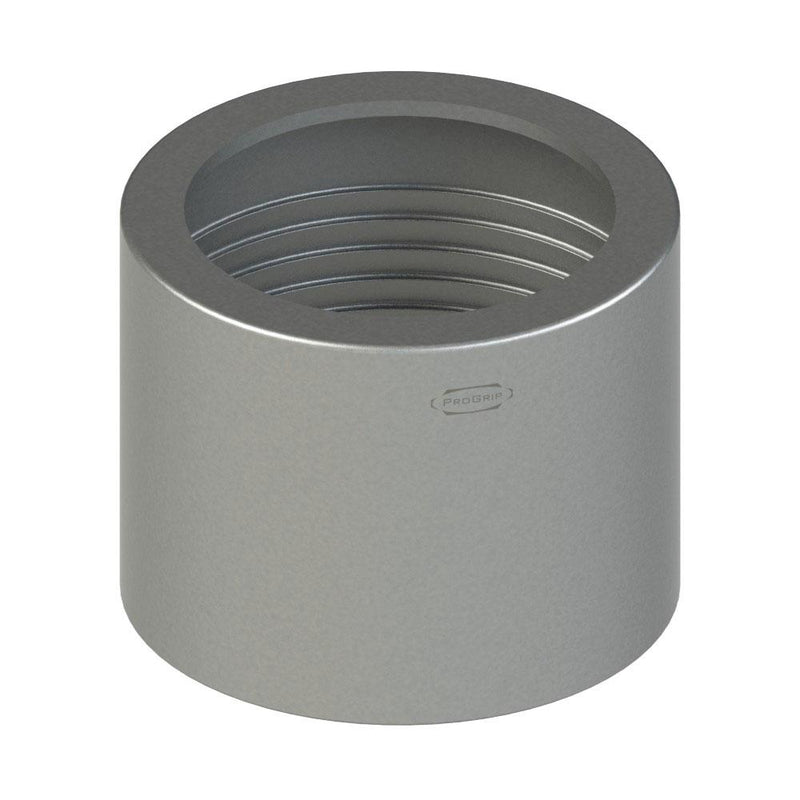

54140428P (40428SFC50) PROGRIP™ by PT-Coupling | Type SFC50 | Sanitary C50 Crimp Ferrule | 4" Size | 4.875" Ferrule ID | 304 Stainless Steel

Save $91.12

$245.47

$245.47 - $245.47

$245.47

$154.35

$154.35 - $154.35

$154.35

PT Coupling
PROGRIP™ | Sanitary C50 Crimp System | Type SFC50 | Sanitary C50 Crimp Ferrule | 304 Stainless Steel

Made in the USA.

Specifications for Variant SKU: 54140428P PT-Coupling
Series:	ProGrip C50 Crimp System
Shape (Orientation):	Straight
Material(s):	304 Stainless Steel

Overview:
PT Coupling manufactures ProGrip™ coupling retention systems for attaching hose to fittings, either by externally crimping or internally expanding. The fittings produced cover a wide range of applications including sanitary, pharmaceutical, chemical, petroleum, industrial, and fire protection. Various types of hose shank designs are utilized to maximize the performance of the different fittings and ferrule combinations. All of the different hose shanks are available with any type of the connecting ends. Ends available include male and female NPT Pipe, Victaulic® style groove, butt weld, socket weld, I-Line, Pacific Coast thread, tri-clamp and flanged.
Features & Applications:
Designed to be used with C50 Sanitary Bodies. Can be used in place of SE Ferrules. Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass. Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants. Made in the USA

Part Name	Item #	Size	Ferrule ID
07110SFC50	54107110P	3/4"	1.313"

10116SFC50	54110116P	1"	1.500"
10118SFC50	54110118P	1"	1.563"
10120SFC50	54110120P	1"	1.625"

15128SFC50	54115128P	1-1/2"	1.875"
15200SFC50	54115200P	1-1/2"	2.000"
15202SFC50	54115202P	1-1/2"	2.063"
15204SFC50	54115204P	1-1/2"	2.125"
15206SFC50	54115206P	1-1/2"	2.188"
15208SFC50	54115208P	1-1/2"	2.250"

20214SFC50	54120214P	2"	2.438"
20216SFC50	54120216P	2"	2.500"
20218SFC50	54120218P	2"	2.563"
20220SFC50	54120220P	2"	2.625"
20222SFC50	54120222P	2"	2.688"
20224SFC50	54120224P	2"	2.750"
20226SFC50	54120226P	2"	2.813"
20230SFC50	54120230P	2"	2.938"

25304SFC50	54125304P	2-1/2"	3.125"
25308SFC50	54125308P	2-1/2"	3.250"
25320SFC50	54125320P	2-1/2"	3.625"

30322SFC50	54130322P	3"	3.688"
30324SFC50	54130324P	3"	3.750"
30326SFC50	54130326P	3"	3.813"
30328SFC50	54130328P	3"	3.875"
30330SFC50	54130330P	3"	3.938"

40422SFC50	54140422P	4"	4.688"
40426SFC50	54140426P	4"	4.813"
40428SFC50	54140428P	4"	4.875"
40500SFC50	54140500P	4"	5.000"

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
