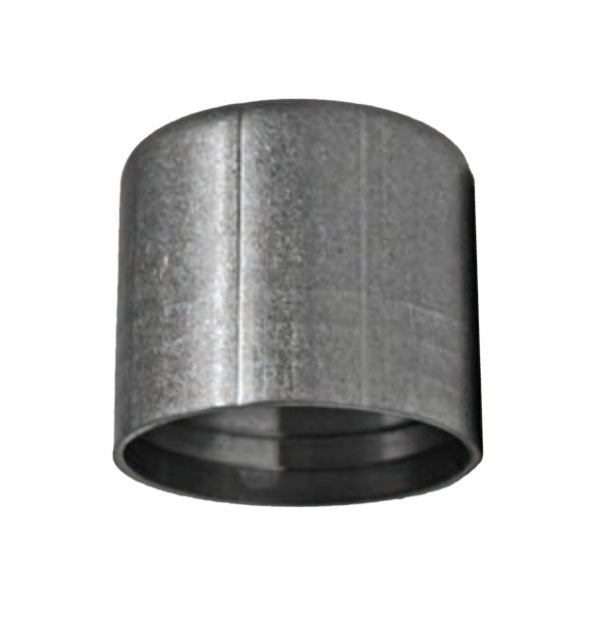

54420228 (20228PMCS) PROGRIP™ by PT-Coupling | Type PMCS | PM Internal Expansion System | 2" Crimp Ferrule | 2.875" Ferrule ID | Plated Carbon Steel

Save $9.85

$26.52

$26.52 - $26.52

$26.52

$16.67

$16.67 - $16.67

$16.67

PT Coupling
PROGRIP™ | PM Internal Expansion System - Industrial | Type PMCS | Crimp Ferrule | Plated Carbon Steel

Made in the USA.

Specifications for Variant SKU: 54420228 PT-Coupling
Series:	ProGrip PM Internal Expansion System
Shape (Orientation):	Straight
Material(s):	Plated Carbon Steel

Overview:
PT Coupling manufactures ProGrip™ coupling retention systems for attaching hose to fittings, either by externally crimping or internally expanding. The fittings produced cover a wide range of applications including sanitary, pharmaceutical, chemical, petroleum, industrial, and fire protection. Various types of hose shank designs are utilized to maximize the performance of the different fittings and ferrule combinations. All of the different hose shanks are available with any type of the connecting ends. Ends available include male and female NPT Pipe, Victaulic® style groove, butt weld, socket weld, I-Line, Pacific Coast thread, tri-clamp and flanged.
Features & Applications:
Designed to be used with PMCS Pull Mandrel bodies (Internal Expanded Carbon Steel bodies). Made in the USA
For use with:
PM Internal Expansion Systems.

Part Name	Item #	Size	Ferrule ID
10118PMCS	54410118	1"	1.563"

12130PMCS	54412130	1-1/2"	1.938"
15206PMCS	54415206	1-1/2"	2.188"

20218PMCS	54420218	2"	2.563"
20224PMCS	54420224	2"	2.750"
20228PMCS	54420228	2"	2.875"
20230PMCS	54420230	2"	2.938"

25308PMCS	54425308	2-1/2"	3.250"
25310PMCS	54425310	2-1/2"	3.313"

30402PMCS	54430402	3"	4.063"
30406PMCS	54430406	3"	4.188"
30408PMCS	54430408	3"	4.250"

40420PMCS	54440420	4"	4.625"
40422PMCS	54440422	4"	4.688"
40424PMCS	54440424	4"	4.750"
40426PMCS	54440426	4"	4.813"

*The above pressure ratings are for the fitting itself. There ar e several factors that determine the pressure rating of a hose assembly. Some of which are hose pressure rating, method of hose attachment, quality of hose attachment, and external fastening devices such as Tri-Clamp and I-Line clamps, flange bolts, etc. It is up to the hose assemble r and the end user to assure that all components are applied pr operly and meet the required working pressure of the system.

It is recommended that hydrostatic testing be done to hose assemblies to assure the above crimp diameters are sufficient for the inten ded application. Reference the NAHAD Hose Safety Institute Hose Assembly Guidelines for recommended testing procedures. www.nahad.org
