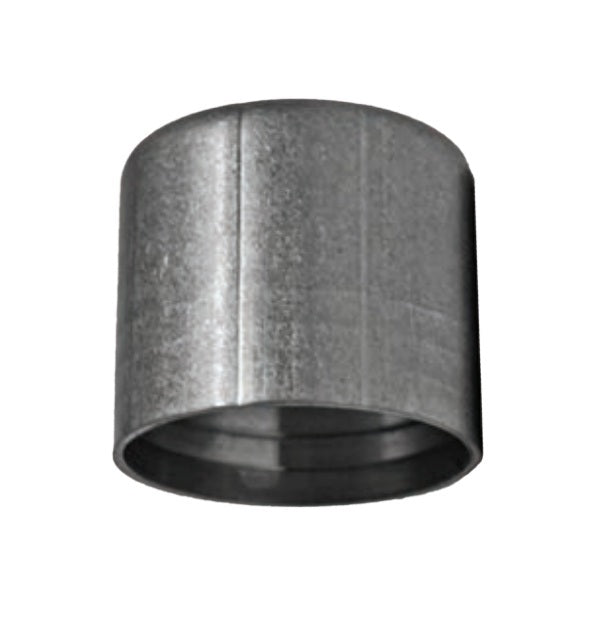

54425310 (25310PMCS) PROGRIP™ by PT-Coupling | Type PMCS | PM Internal Expansion System | 2-1/2" Crimp Ferrule | 3.313" Ferrule ID | Plated Carbon Steel

54425310 (25310PMCS) PROGRIP™ by PT-Coupling | Type PMCS | PM Internal Expansion System | 2-1/2" Crimp Ferrule | 3.313" Ferrule ID | Plated Carbon Steel

Save $18.24 Save $18.24
$49.15
$49.15 - $49.15
$49.15
$30.91
$30.91 - $30.91
$30.91

PT Coupling
PROGRIP™ | PM Internal Expansion System - Industrial | Type PMCS | Crimp Ferrule | Plated Carbon Steel

Made in the USA.
Specifications for Variant SKU: 54425310 PT-Coupling
Series: ProGrip PM Internal Expansion System
Shape (Orientation): Straight
Material(s): Plated Carbon Steel
Overview:
  • PT Coupling manufactures ProGrip™ coupling retention systems for attaching hose to fittings, either by externally crimping or internally expanding. The fittings produced cover a wide range of applications including sanitary, pharmaceutical, chemical, petroleum, industrial, and fire protection. Various types of hose shank designs are utilized to maximize the performance of the different fittings and ferrule combinations. All of the different hose shanks are available with any type of the connecting ends. Ends available include male and female NPT Pipe, Victaulic® style groove, butt weld, socket weld, I-Line, Pacific Coast thread, tri-clamp and flanged.
Features & Applications:
  • Designed to be used with PMCS Pull Mandrel bodies (Internal Expanded Carbon Steel bodies).
  • Made in the USA
For use with:
  • PM Internal Expansion Systems.
Part
Name		 Item # Size Ferrule ID
10118PMCS 54410118 1" 1.563"

12130PMCS 54412130 1-1/2" 1.938"
15206PMCS 54415206 1-1/2" 2.188"

20218PMCS 54420218 2" 2.563"
20224PMCS 54420224 2" 2.750"
20228PMCS 54420228 2" 2.875"
20230PMCS 54420230 2" 2.938"

25308PMCS 54425308 2-1/2" 3.250"
25310PMCS 54425310 2-1/2" 3.313"

30402PMCS 54430402 3" 4.063"
30406PMCS 54430406 3" 4.188"
30408PMCS 54430408 3" 4.250"

40420PMCS 54440420 4" 4.625"
40422PMCS 54440422 4" 4.688"
40424PMCS 54440424 4" 4.750"
40426PMCS 54440426 4" 4.813"

*The above pressure ratings are for the fitting itself. There ar e several factors that determine the pressure rating of a hose assembly. Some of which are hose pressure rating, method of hose attachment, quality of hose attachment, and external fastening devices such as Tri-Clamp and I-Line clamps, flange bolts, etc. It is up to the hose assemble r and the end user to assure that all components are applied pr operly and meet the required working pressure of the system.

It is recommended that hydrostatic testing be done to hose assemblies to assure the above crimp diameters are sufficient for the inten ded application. Reference the NAHAD Hose Safety Institute Hose Assembly Guidelines for recommended testing procedures. www.nahad.org

PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
