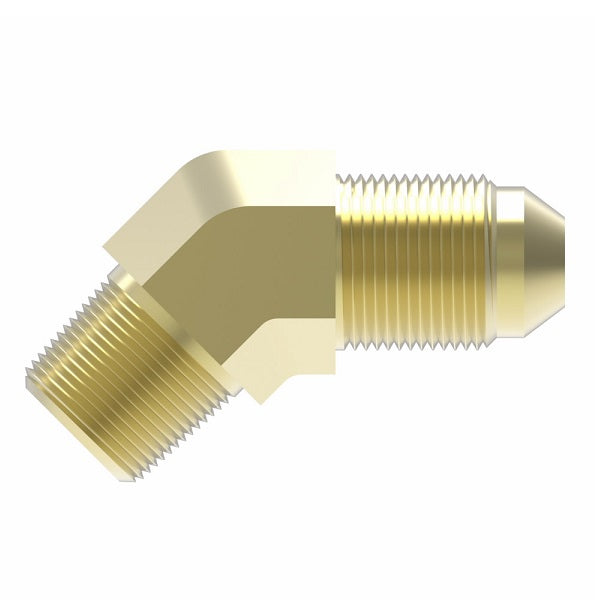

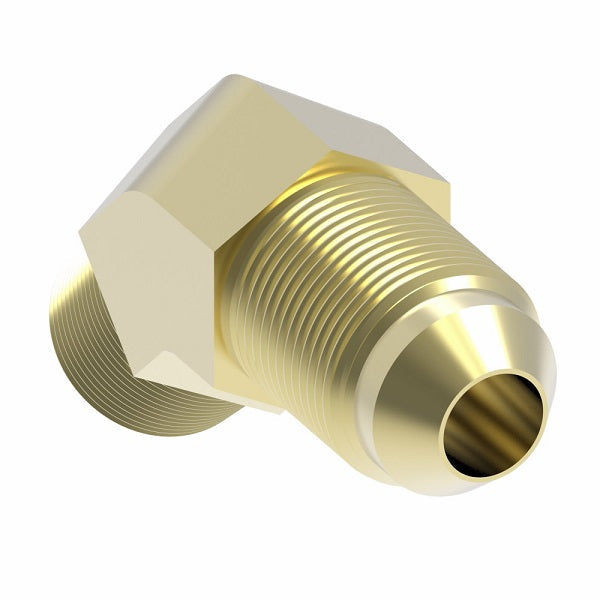

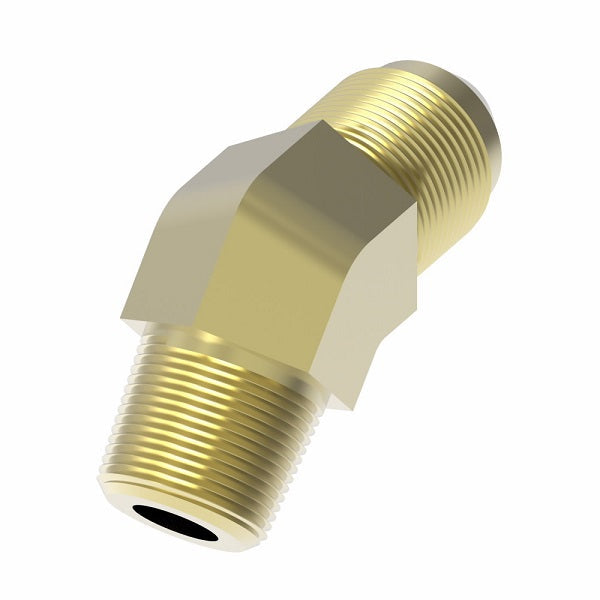

54X6Z by Danfoss | Male Pipe/ SAE 45° Flare 45° Elbow Adapter (with Sealant) | 1/4" Male NPTF x 3/8" Male SAE 45° Flare | Brass
54X6Z by Danfoss | Male Pipe/ SAE 45° Flare 45° Elbow Adapter (with Sealant) | 1/4" Male NPTF x 3/8" Male SAE 45° Flare | Brass
54X6Z by Danfoss | Male Pipe/ SAE 45° Flare 45° Elbow Adapter (with Sealant) | 1/4" Male NPTF x 3/8" Male SAE 45° Flare | Brass
54X6Z by Danfoss | Male Pipe/ SAE 45° Flare 45° Elbow Adapter (with Sealant) | 1/4" Male NPTF x 3/8" Male SAE 45° Flare | Brass

54X6Z by Danfoss | Male Pipe/ SAE 45° Flare 45° Elbow Adapter (with Sealant) | 1/4" Male NPTF x 3/8" Male SAE 45° Flare | Brass

$14.82 - $14.82
$14.82
$14.82 - $14.82
$14.82

Aeroquip® by Danfoss
Male Pipe/ SAE 45° Flare Adapter
Male NPTF x Male SAE 45° Flare
45° Elbow
Specifications for Variant SKU: 54X6Z Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 1/4in Male NPTF, 3/8in Male SAE 45 Flare
Material(s): Brass
Overview:
  • Danfoss brass tube fittings are made from high quality UNS CA-360 brass bar, and are precision machined to meet SAE standards and specifications.
Applications:
  • LP and natural gas, flammable liquids (special order), instrumentation, refrigeration, power steering, hydraulic and pneumatic systems.
Advantages:
  • Low cost and reusability.
  • Long or short nut.
  • Good vibration resistance - use long nut when greater vibration resistance is required.
Used With:
  • Copper, brass, aluminum and steel hydraulic tubing that can be flared.
Pressure:
  • Working pressure up to 2000 psi depending on tube size. Will withstand burst pressure of standard tubing - up to 5000 psi with bundyweld (double flared) and 3500 psi with copper tubing, depending on size.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
Conformance:
  • Ref. SAE No. 010302
  • Listed by Underwriter's Laboratories (available on special order) for flammable liquids, refrigeration and gas.
  • Meets specifications and standards of ASA, ASME, SAE and MS (Military Standards).
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4"
Thread Size 5/16-24 3/8-24 7/16-20 1/2-20 5/8-18 11/16-18 3/4-16 7/8-14 1-1/16-14
Brass
Part Number 		Brass
with Sealant
Part Number 		Tube OD Male NPTF D M N
54X4 54X4Z 1/4" 1/8" 0.188" 0.67" 0.64"
54X4X4 - 1/4" 1/4" 0.188" 0.73" 0.87"
54X5 - 5/16" 1/8" 0.219" 0.78" 0.64"
54X6 54X6Z 3/8" 1/4" 0.283" 0.89" 0.86"
54X8 54X8Z 1/2" 3/8" 0.407" 1.06" 0.96"
54X8X8 - 1/2" 1/2" 0.406" 1.12" 1.17"
54X10x6 - 5/8" 3/8" 0.500" 1.23" 0.98"
54X10 - 5/8" 1/2" 0.500" 1.23" 1.17"
