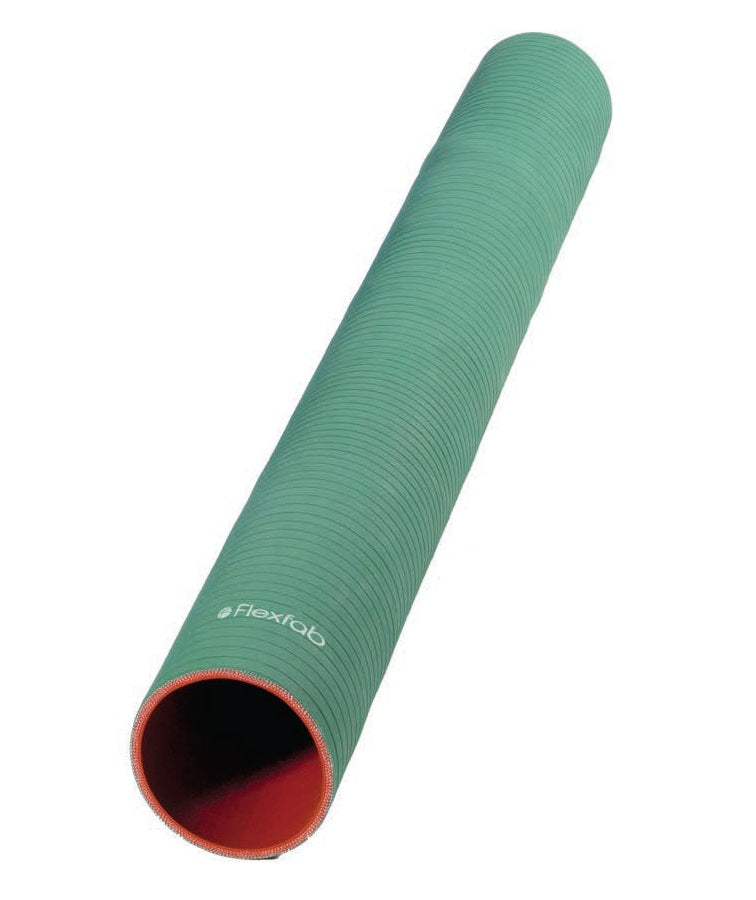

5500-125X12 by FlexFab | Series 5500 | 3-ply Coolant Hose | 1.25" x 1.57" OD | Green | 12ft Length

5500-125X12 by FlexFab | Series 5500 | 3-ply Coolant Hose | 1.25" x 1.57" OD | Green | 12ft Length

Save $21.26 Save $21.26
$191.30
$191.30 - $191.30
$191.30
$170.04
$170.04 - $170.04
$170.04

Flexfab Industrial Hose - Series 5515 & 5500 - 3-ply Coolant Hose

WARNING: This product may take 5-7 weeks to ship.
Specifications for Variant SKU: 5500-125X12 FlexFab
Series: 5500 Series
Hose Color(s): Green
Internal Diameter: 1.25in
Outer Diameter: 1.57in
Tubing Construction: Silicone
Cover Construction: Silicone
Applicable Specs & Approvals: SAE J20 R1 Class A, TMC RP303B Class I Grade II
Overview:
  • Available in a Blue or Green Cover
  • Comes in 3' Lengths
  • 12' Lengths Also Available
Construction:
  • Silicone hose with 3-plies of Polyester Reinforcement
Specifications:
  • Meets or exceeds the operating requirements of SAE J20 R1 Class A
  • Meets or exceeds the operating requirements of TMC RP303B Class I Grade II
  • Temperature range is -65°F (-54°C) to +350°F (+177°C)
  • Custom Wall Thickness is .140"/.190"
  • Working pressure is 1/3 of the burst pressure
Applications:
  • For heavy duty pressure connections in hostile engine environments
  • Resists hardening, cracking, cold leaks, aging, and many chemicals
  • Ideal for extreme temperature and various pressure ranges where high performance levels are required
Blue Series Part Number (3ft & 12ft) Green Series Part Number (3ft & 12ft) Inside Diameter Outside Diameter Actual Burst Pressure Burst Pressure Weight Clamp
SAE J20 R1 TMC
5515-038 & 5515-038X12 5500-038 & N/A 0.38" 0.70" 500 PSI 425 PSI 125 PSI 0.12 lbs./ft -
5515-050 & 5515-050X12 5500-050 & N/A 0.50" 0.82" 500 PSI 425 PSI 125 PSI 0.16 lbs./ft FLX2582-0006
5515-062 & 5515-062X12 5500-062 & N/A 0.63" 0.95" 485 PSI 425 PSI 125 PSI 0.20 lbs./ft FLX2582-0010
5515-075 & 5515-075X12 5500-075 & N/A 0.75" 1.07" 475 PSI 325 PSI 125 PSI 0.24 lbs./ft FLX2582-0012
5515-087 & 5515-087X12 5500-087 & N/A 0.88" 1.20" 465 PSI 300 PSI 125 PSI 0.28 lbs./ft FLX2582-0012
5515-100 & 5515-100X12 5500-100 & N/A 1.00" 1.32" 450 PSI 300 PSI 125 PSI 0.32 lbs./ft FLX2582-0016
5515-112 & 5515-112X12 5500-112 & 5500-112X12 1.13" 1.45" 435 PSI 300 PSI 125 PSI 0.36 lbs./ft FLX2582-0016 FLX2584-0175
5515-125 & 5515-125X12 5500-125 & 5500-125X12 1.25" 1.57" 425 PSI 275 PSI 125 PSI 0.40 lbs./ft FLX2582-0020 FLX2584-0175
5515-138 & 5515-138X12 5500-138 & N/A 1.38" 1.70" 400 PSI 250 PSI 125 PSI 0.44 lbs./ft FLX2582-0020 FLX2584-0212
5515-150 & 5515-150X12 5500-150 & 5500-150X12 1.50" 1.82" 375 PSI 250 PSI 125 PSI 0.48 lbs./ft FLX2582-0024 FLX2584-0212
5515-162 & 5515-162X12 5500-162 & N/A 1.63" 1.95" 350 PSI 225 PSI 125 PSI 0.52 lbs./ft FLX2582-0024 FLX2584-0212
5515-175 & 5515-175X12 5500-175 & N/A 1.75" 2.07" 300 PSI 225 PSI 125 PSI 0.56 lbs./ft FLX2582-0028 FLX2584-0262
5515-187 & 5515-187X12 5500-187 & N/A 1.88" 2.20" 250 PSI 200 PSI 100 PSI 0.60 lbs./ft FLX2582-0032 FLX2584-0262
5515-200 & 5515-200X12 5500-200 & 5500-200X12 2.00" 2.32" 250 PSI 200 PSI 100 PSI 0.64 lbs./ft FLX2582-0032 FLX2584-0262
5515-212 & 5515-212X12 5500-212 & N/A 2.13" 2.45" 235 PSI 175 PSI 100 PSI 0.68 lbs./ft FLX2582-0032 FLX2584-0262
5515-225 & 5515-225X12 5500-225 & N/A 2.25" 2.57" 225 PSI 175 PSI 100 PSI 0.72 lbs./ft FLX2582-0036 FLX2584-0312
5515-238 & 5515-238X12 5500-238 & N/A 2.38" 2.70" 210 PSI 150 PSI 100 PSI 0.76 lbs./ft FLX2582-0040 FLX2584-0312
5515-250 & 5515-250X12 5500-250 & N/A 2.50" 2.82" 200 PSI 150 PSI 100 PSI 0.80 lbs./ft FLX2582-0040 FLX2584-0312
5515-262 & 5515-262X12 5500-262 & N/A 2.63" 2.95" 200 PSI 125 PSI 100 PSI 0.84 lbs./ft FLX2582-0040 FLX2584-0312
5515-275 & 5515-275X12 5500-275 & N/A 2.75" 3.07" 200 PSI 125 PSI 100 PSI 0.88 lbs./ft FLX2582-0044 FLX2584-0362
5515-287 & 5515-287X12 5500-287 & N/A 2.88" 3.20" 200 PSI 100 PSI 100 PSI 0.92 lbs./ft FLX2582-0044 FLX2584-0362
5515-300 & 5515-300X12 5500-300 & N/A 3.00" 3.32" 200 PSI 100 PSI 100 PSI 0.96 lbs./ft FLX2582-0048 FLX2584-0362
5515-312 & 5515-312X12 5500-312 & N/A 3.13" 3.45" 175 PSI 75 PSI 100 PSI 1.00 lbs./ft FLX2582-0048 FLX2584-0362
5515-325 & 5515-325X12 5500-325 & N/A 3.25" 3.57" 175 PSI 75 PSI 100 PSI 1.04 lbs./ft FLX2582-0052 FLX2584-0412
5515-338 & 5515-338X12 5500-338 & N/A 3.38" 3.70" 150 PSI 75 PSI 100 PSI 1.08 lbs./ft FLX2582-0052 FLX2584-0412
5515-350 & 5515-350X12 5500-350 & N/A 3.50" 3.82" 150 PSI 75 PSI 100 PSI 1.12 lbs./ft FLX2582-0056 FLX2584-0412
5515-375 & 5515-375X12 5500-375 & N/A 3.75" 4.07" 135 PSI 50 PSI 100 PSI 1.20 lbs./ft FLX2582-0060 FLX2584-0412
5515-387 & 5515-387X12 5500-387 & N/A 3.88" 4.20" 125 PSI 50 PSI 100 PSI 1.24 lbs./ft FLX2582-0060 FLX2584-0462
5515-400 & 5515-400X12 5500-400 & N/A 4.00" 4.32" 125 PSI 50 PSI 100 PSI 1.28 lbs./ft FLX2582-0072 or FLX2584-0462
5515-450 & 5515-450X12 5500-450 & N/A 4.50" 4.82" 100 PSI N/A N/A 1.44 lbs./ft FLX2582-0064 or FLX2584-0512
5515-500 & 5515-500X12 5500-500 & N/A 5.00" 5.32" 90 PSI N/A N/A 1.60 lbs./ft FLX2584-0562
5515-550 & N/A 5500-550 & N/A 5.50" 5.82" 75 PSI N/A N/A 1.76 lbs./ft FLX2584-0612
5515-600 & 5515-600X12 5500-600 & N/A 6.00" 6.32" 75 PSI N/A N/A 1.92 lbs./ft FLX2584-0662
*Specifications for reference only. Specific test data available on request.
Flexfab

Flexfab

Flexfab produces a massive array of highly-engineered products in a wide variety of materials and designs for the aerospace, automotive, rail, and heavy-duty truck industries. Our proprietary processes of compounding, calendaring, extruding, molding, and bonding silicone rubber, organic rubber, and reinforcing materials makes our products world-class.
