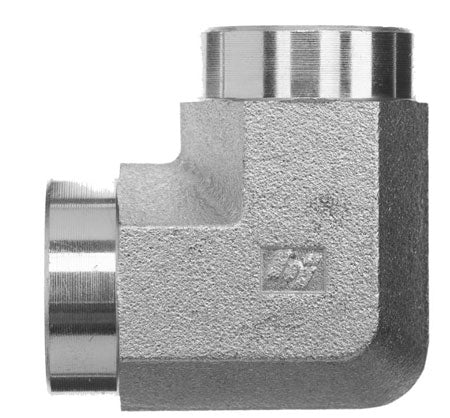

5504-06-04-FG by Brennan Inc. | -06 Female Pipe x -04 Female Pipe | 90° Elbow | Forged Steel

5504-06-04-FG by Brennan Inc. | -06 Female Pipe x -04 Female Pipe | 90° Elbow | Forged Steel

Save $4.79 Save $4.79
$11.98
$11.98 - $11.98
$11.98
$7.19
$7.19 - $7.19
$7.19

Brennan Inc.
Tube Fittings & Adapters: 5504 - Female Pipe x Female Pipe 90° Elbow
Specifications for Variant SKU: 5504-06-04-FG Brennan
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Female NPTF, 1/4in Female NPTF, Some Ends Match
Material(s): Steel
Part Number Material A1 NPTF A2 NPTF N Length N1 Length Y Flats
5504-02-02-FG Forged Steel 1/8-27" 1/8-27" 0.660" 0.660" 0.562"
5504-04-02-FG Forged Steel 1/4-18" 1/8-27" 0.880" 0.880" 0.750"
5504-04-04-FG Forged Steel 1/4-18" 1/4-18" 0.880" 0.880" 0.750"
5504-06-04-FG Forged Steel 3/8-18" 1/4-18" 1.020" 1.010" 0.875"
5504-06-06-FG Forged Steel 3/8-18" 3/8-18" 1.020" 1.020" 0.875"
5504-08-04-FG Forged Steel 1/2-14" 1/4-18" 1.23" 1.10" 1.062"
5504-08-06-FG Forged Steel 1/2-14" 3/8-18" 1.230" 1.010" 1.062"
5504-08-08-FG Forged Steel 1/2-14" 1/2-14" 1.230" 1.230" 1.062"
5504-12-06-FG Forged Steel 3/4-14" 3/8-18" 1.36" 1.36" 1.312"
5504-12-08-FG Forged Steel 3/4-14" 1/2-14" 1.360" 1.350" 1.312"
5504-12-12-FG Forged Steel 3/4-14" 3/4-14" 1.360" 1.360" 1.312"
5504-16-08-FG Forged Steel 1-11-1/2" 1/2-14" 1.620" 1.620" 1.625"
5504-16-12-FG Forged Steel 1-11-1/2" 3/4-14" 1.620" 1.620" 1.625"
5504-16-16-FG Forged Steel 1-11-1/2" 1-11-1/2" 1.620" 1.620" 1.625"
5504-20-12-FG Forged Steel 1-1/4-11-1/2" 3/4-14" 1.700" 1.450" 1.875"
5504-20-16-FG Forged Steel 1-1/4-11-1/2" 1-11-1/2" 1.700" 1.700" 1.875"
5504-20-20-FG Forged Steel 1-1/4-11-1/2" 1-1/4-11-1/2" 1.700" 1.700" 1.875"
5504-24-20-FG Forged Steel 1-1/2-11-1/2" 1-1/4-11-1/2" 2.080" 2.080" 2.562"
5504-24-24-FG Forged Steel 1-1/2-11-1/2" 1-1/2-11-1/2" 2.080" 2.080" 2.562"
5504-32-32-FG Forged Steel 2-11-1/2" 2-11-1/2" 2.39" 2.39" 2.812"

5504-02-02-B Brass 1/8-27" 1/8-27" 0.660" 0.660" 0.562"
5504-04-04-B Brass 1/4-18" 1/4-18" 0.880" 0.880" 0.750"
5504-06-06-B Brass 3/8-18" 3/8-18" 1.020" 1.020" 0.875"

5504-02-02-SS Stainless Steel 1/8-27" 1/8-27" 0.660" 0.660" 0.562"
5504-04-02-SS Stainless Steel 1/4-18" 1/8-27" 0.880" 0.880" 0.750"
5504-04-04-SS Stainless Steel 1/4-18" 1/4-18" 0.880" 0.880" 0.750"
5504-06-04-SS Stainless Steel 3/8-18" 1/4-18" 1.020" 1.010" 0.875"
5504-06-06-SS Stainless Steel 3/8-18" 3/8-18" 1.020" 1.020" 0.875"
5504-08-06-SS Stainless Steel 1/2-14" 3/8-18" 1.230" 1.010" 1.062"
5504-08-08-SS Stainless Steel 1/2-14" 1/2-14" 1.230" 1.230" 1.062"
5504-12-12-SS Stainless Steel 3/4-14" 3/4-14" 1.360" 1.360" 1.312"
5504-16-16-SS Stainless Steel 1-11-1/2" 1-11-1/2" 1.620" 1.620" 1.625"
5504-20-20-SS Stainless Steel 1-1/4-11-1/2" 1-1/4-11-1/2" 1.700" 1.700" 1.875"
5504-24-24-SS Stainless Steel 1-1/2-11-1/2" 1-1/2-11-1/2" 2.080" 2.080" 2.562"
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
