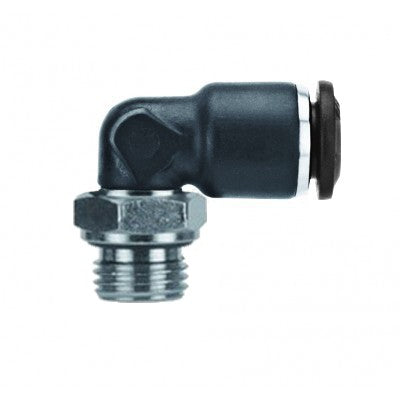

55115-4-1/8" AIGNEP | 55/56 Series | Swivel 90° Elbow | 4mm Tube x 1/8" BSPP Male | Pack of 10
55116-4-1/8 by AIGNEP | 55/56 Series | Swivel | 4mm Tube x 1/8" BSPP Male | 90° Elbow | Pack of 10
55115-4-1/8" AIGNEP | 55/56 Series | Swivel 90° Elbow | 4mm Tube x 1/8" BSPP Male | Pack of 10

55116-4-1/8 by AIGNEP | 55/56 Series | Swivel | 4mm Tube x 1/8" BSPP Male | 90° Elbow | Pack of 10

Save $8.21 Save $8.21
$20.53
$20.53 - $20.53
$20.53
$12.32
$12.32 - $12.32
$12.32

Package Quantity: 10 ea

Specifications for Variant SKU: 55116-4-1/8 AIGNEP | 10 |
Series: 55/56 Series
Shape (Orientation): 90 Degree
Ends Configuration: 4mm Push-to-Connect, 1/8in Male BSPP
Material(s): Nylon
Seal Material(s): Buna-N/Nitrile Rubber

Swivel Elbow Composite - BSPP

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon
Thread Seal: NBR
Thread Type: BSPP

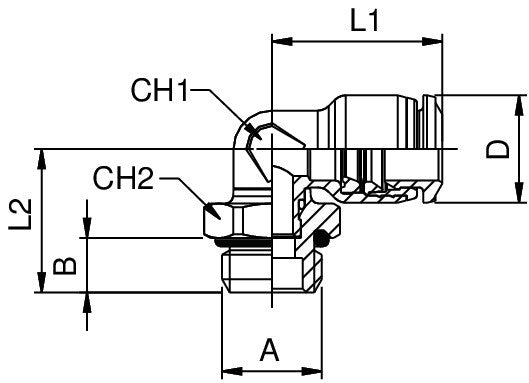

Product Number Tube A B L1 L2 CH1 CH2 D
55116-4-M5 4 mm M5 3.6 mm 16.5 mm 13.8 mm 7 mm 9 mm 10 mm
55116-4-M7x1 4 mm M7 x 1 4.8 mm 16.5 mm 14.4 mm 7 mm 9 mm 10 mm
55116-4-1/8 4 mm 1/8" 5.4 mm 16.5 mm 15 mm 7 mm 13 mm 10 mm
55116-6-M5 6 mm M5 3.6 mm 20.5 mm 14.7 mm 9 mm 9 mm 12 mm
55116-6-1/8 6 mm 1/8" 5.4 mm 20.5 mm 15.8 mm 9 mm 13 mm 12 mm
55116-6-1/4 6 mm 1/4" 7.1 mm 20.5 mm 17.5 mm 9 mm 16 mm 12 mm
55116-8-1/4 8 mm 1/4" 7.1 mm 22 mm 18.7 mm 10 mm 16 mm 14 mm
55116-8-3/8 8 mm 3/8" 8.1 mm 22 mm 20.1 mm 10 mm 20 mm 14 mm
55116-10-3/8 10 mm 3/8" 8.1 mm 26.5 mm 22.3 mm 13 mm 20 mm 17 mm
55116-10-1/2 10 mm 1/2" 9.6 mm 26.5 mm 23.8 mm 13 mm 25 mm 17 mm
55116-12-1/4 12 mm 1/4" 7.1 mm 30 mm 24.1 mm 16 mm 16 mm 20 mm
55116-12-3/8 12 mm 3/8" 8.1 mm 30 mm 23.6 mm 16 mm 20 mm 20 mm
55116-12-1/2 12 mm 1/2" 9.6 mm 30 mm 25.1 mm 16 mm 25 mm 20 mm
55116-14-3/8 14 mm 3/8" 8.1 mm 31 mm 28.1 mm 18 mm 20 mm 21 mm
55116-14-1/2 14 mm 1/2" 9.6 mm 31 mm 26.1 mm 18 mm 25 mm 21 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
