55115-5-M5 AIGNEP | 55/56 Series | Swivel 90° Elbow | 5mm Tube x M5 Male | Pack of 10

55116-5-M5 by AIGNEP | 55/56 Series | Swivel | 5mm Tube x M5 Male | 90° Elbow | Pack of 10

Save $9.56

$29.96

$29.96 - $29.96

$29.96

$20.40

$20.40 - $20.40

$20.40

Package Quantity: 10 ea

Specifications for Variant SKU: 55116-5-M5 AIGNEP \| 10 \|
Series:	55/56 Series
Shape (Orientation):	90 Degree
Material(s):	Nylon
Seal Material(s):	Buna-N/Nitrile Rubber

Swivel Elbow Composite - BSPP

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon
Thread Seal: NBR
Thread Type: BSPP

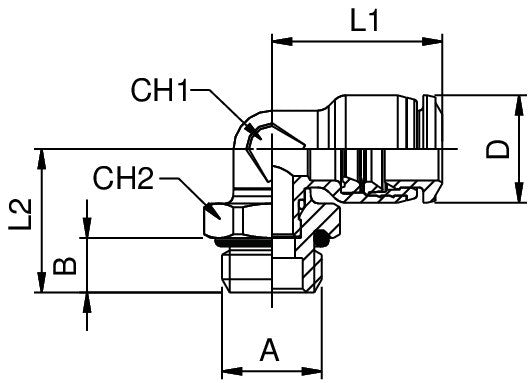

Product Number	Tube	A	B	L1	L2	CH1	CH2	D
55116-4-M5	4 mm	M5	3.6 mm	16.5 mm	13.8 mm	7 mm	9 mm	10 mm
55116-4-M7x1	4 mm	M7 x 1	4.8 mm	16.5 mm	14.4 mm	7 mm	9 mm	10 mm
55116-4-1/8	4 mm	1/8"	5.4 mm	16.5 mm	15 mm	7 mm	13 mm	10 mm
55116-6-M5	6 mm	M5	3.6 mm	20.5 mm	14.7 mm	9 mm	9 mm	12 mm
55116-6-1/8	6 mm	1/8"	5.4 mm	20.5 mm	15.8 mm	9 mm	13 mm	12 mm
55116-6-1/4	6 mm	1/4"	7.1 mm	20.5 mm	17.5 mm	9 mm	16 mm	12 mm
55116-8-1/4	8 mm	1/4"	7.1 mm	22 mm	18.7 mm	10 mm	16 mm	14 mm
55116-8-3/8	8 mm	3/8"	8.1 mm	22 mm	20.1 mm	10 mm	20 mm	14 mm
55116-10-3/8	10 mm	3/8"	8.1 mm	26.5 mm	22.3 mm	13 mm	20 mm	17 mm
55116-10-1/2	10 mm	1/2"	9.6 mm	26.5 mm	23.8 mm	13 mm	25 mm	17 mm
55116-12-1/4	12 mm	1/4"	7.1 mm	30 mm	24.1 mm	16 mm	16 mm	20 mm
55116-12-3/8	12 mm	3/8"	8.1 mm	30 mm	23.6 mm	16 mm	20 mm	20 mm
55116-12-1/2	12 mm	1/2"	9.6 mm	30 mm	25.1 mm	16 mm	25 mm	20 mm
55116-14-3/8	14 mm	3/8"	8.1 mm	31 mm	28.1 mm	18 mm	20 mm	21 mm
55116-14-1/2	14 mm	1/2"	9.6 mm	31 mm	26.1 mm	18 mm	25 mm	21 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
