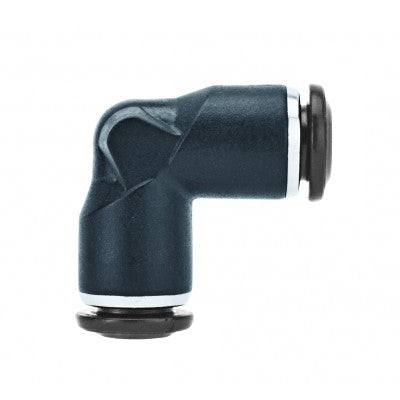

55130-12-10 AIGNEP | 55/56 Series | Reducing Union 90° Elbow Composite | 12mm Tube x 10mm Tube | Pack of 10

55130-12-10 by AIGNEP | 55/56 Series | Reducing Union Composite | 12mm Tube x 10mm Tube | 90° Elbow | Pack of 10

Save $12.54

$33.34

$33.34 - $33.34

$33.34

$20.80

$20.80 - $20.80

$20.80

Package Quantity: 10 EA

Specifications for Variant SKU: 55130-12-10 AIGNEP \| 10 \|
Series:	55/56 Series
Shape (Orientation):	90 Degree
Ends Configuration:	12mm Push-to-Connect, 10mm Push-to-Connect
Material(s):	Nylon

Union Elbow Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon

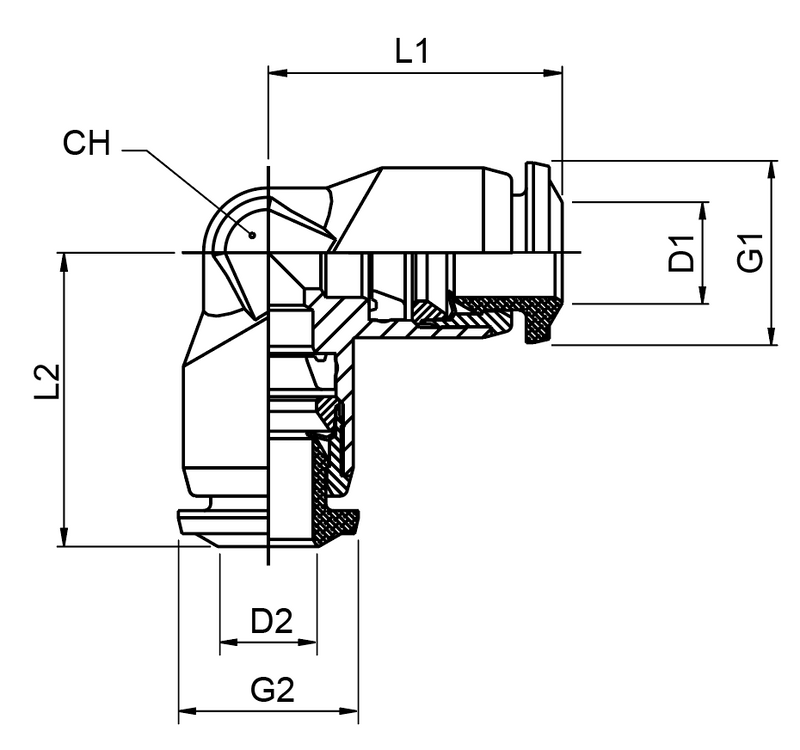

Product Number	D1	D2	L1	L2	G1	G2	CH
55130-4	4 mm	4 mm	16.5 mm	16.5 mm	10 mm	10 mm	9 mm
55130-6	6 mm	6 mm	20.5 mm	20.5 mm	12 mm	12 mm	11 mm
55130-8	8 mm	8 mm	22 mm	22 mm	14 mm	14 mm	13 mm
55130-10	10 mm	10 mm	26.5 mm	26.5 mm	17 mm	17 mm	16 mm
55130-12	12 mm	12 mm	30 mm	30 mm	20 mm	20 mm	19 mm
55130-14	14 mm	14 mm	30.5 mm	30.5 mm	21 mm	21 mm	20 mm
55130-8-6	8 mm	6 mm	22.5 mm	22.5 mm	14 mm	14 mm	13 mm
55130-10-8	10 mm	8 mm	26 mm	26 mm	17 mm	17 mm	16 mm
55130-12-10	12 mm	10 mm	30.5 mm	30.5 mm	20 mm	20 mm	19 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
