55140-8-10 AIGNEP | 55/56 Series | Plug-In 90° Elbow Reducer | 8mm Tube x 10mm Stud | Pack of 10

55140-8-10 by AIGNEP | 55/56 Series | Plug-In Reducer | 8mm Tube x 10mm Stud | 90° Elbow | Pack of 10

Save $5.87

$14.67

$14.67 - $14.67

$14.67

$8.80

$8.80 - $8.80

$8.80

Package Quantity: 10 ea

Specifications for Variant SKU: 55140-8-10 AIGNEP \| 10 \|
Series:	55/56 Series
Shape (Orientation):	90 Degree
Ends Configuration:	8mm Push-to-Connect, 10mm Tube Stem
Material(s):	Nylon
Seal Material(s):	NBR

Elbow Plug In Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon
Thread Seal: NBR

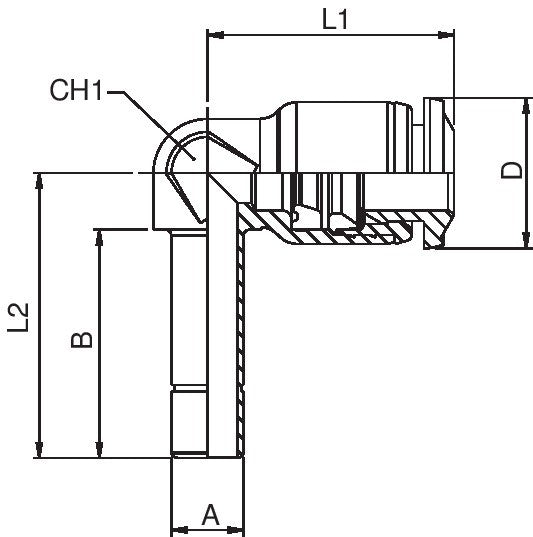

Product Number	Tube	A	B	L1	L2	CH1	D
55140-4	4 mm	4 mm	17 mm	16.5 mm	20.8 mm	7 mm	10 mm
55140-4-6	4 mm	6 mm	19 mm	16.5 mm	22.8 mm	7 mm	10 mm
55140-6-4	6 mm	4 mm	17 mm	20.5 mm	21.7 mm	9 mm	12.5 mm
55140-8-10	8 mm	10 mm	21.8 mm	22 mm	27.6 mm	10 mm	14 mm
55140-10	10 mm	10 mm	22.5 mm	26.5 mm	30 mm	13 mm	17 mm
55140-10-12	10 mm	12 mm	24.7 mm	26.5 mm	32.2 mm	13 mm	17 mm
55140-12	12 mm	12 mm	25.5 mm	30 mm	33.5 mm	16 mm	20 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
