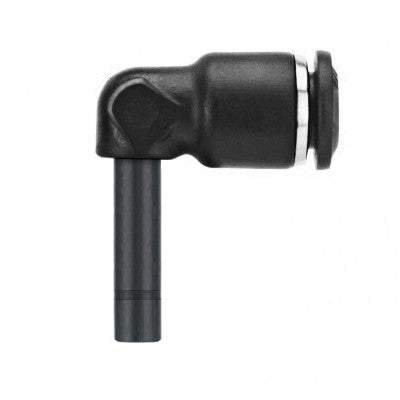

55150-12 AIGNEP | 55/56 Series | Extended Plug-In 90° Elbow | 12mm Tube x 12mm Stud | Pack of 10

55150-12 by AIGNEP | 55/56 Series | Extended Plug-In | 12mm Tube x 12mm Stud | 90° Elbow | Pack of 10

Save $0.13

$13.92

$13.92 - $13.92

$13.92

$13.79

$13.79 - $13.79

$13.79

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 55150-12 AIGNEP \| 10 \|
Series:	55/56 Series
Shape (Orientation):	90 Degree
Material(s):	Nylon

Elbow Plug In Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon

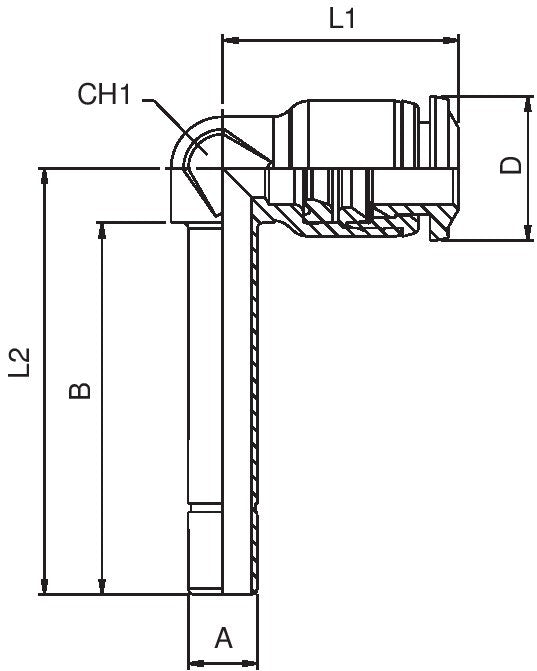

Product Number	Tube	A	B	L1	L2	CH1	D
55150-4	4 mm	4 mm	28 mm	16.5 mm	31.8 mm	7 mm	10 mm
55150-4-6	4 mm	6 mm	30.5 mm	16.5 mm	34.3 mm	7 mm	10 mm
55150-6	6 mm	6 mm	32.3 mm	20.5 mm	37 mm	9 mm	12.5 mm
55150-6-4	6 mm	4 mm	30 mm	20.5 mm	34.7 mm	9 mm	12.5 mm
55150-8	8 mm	8 mm	36 mm	22 mm	42 mm	10 mm	14 mm
55150-8-10	8 mm	10 mm	37.5 mm	22 mm	43.1 mm	10 mm	14 mm
55150-10	10 mm	10 mm	40.8 mm	26.5 mm	48.3 mm	13 mm	17 mm
55150-10-12	10 mm	12 mm	43.2 mm	26.5 mm	50.7 mm	13 mm	17 mm
55150-12	12 mm	12 mm	47 mm	31 mm	55 mm	16 mm	20 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
