55180-10 AIGNEP | 55/56 Series | 45° Union Elbow | 10mm Tube | Pack of 10

55180-10 by AIGNEP | 55/56 Series | Union | 10mm Tube | 45° Elbow | Pack of 10

Save $16.73

$38.73

$38.73 - $38.73

$38.73

$22.00

$22.00 - $22.00

$22.00

Package Quantity: 10 ea

Specifications for Variant SKU: 55180-10 AIGNEP \| 10 \|
Series:	55/56 Series
Shape (Orientation):	45 Degree
Ends Configuration:	10mm Push-to-Connect, 10mm Push-to-Connect, Some Ends Match
Material(s):	Nylon

45° Elbow Connector

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon

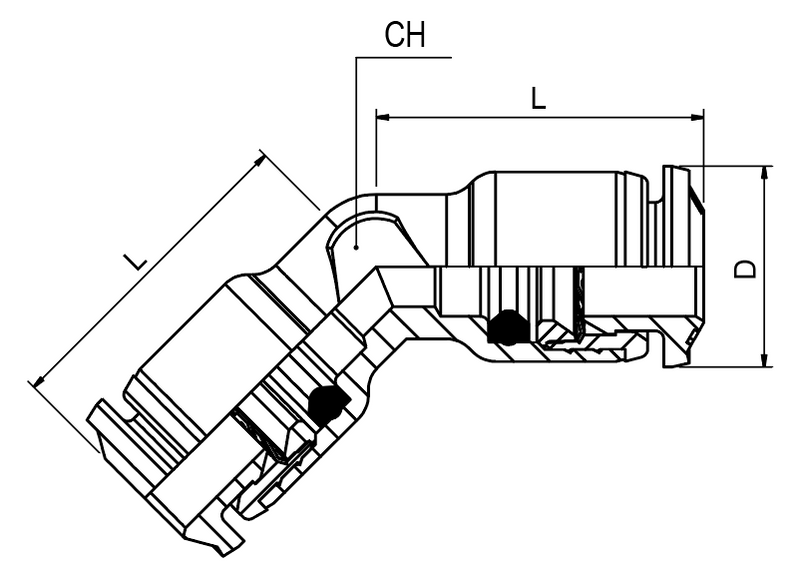

Product Number	Tube	L	CH	D
55180-4	4 mm	16.5 mm	7 mm	10 mm
55180-6	6 mm	20.5 mm	9 mm	12 mm
55180-8	8 mm	22 mm	10 mm	14 mm
55180-10	10 mm	26.5 mm	13 mm	17 mm
55180-12	12 mm	30 mm	16 mm	20 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
