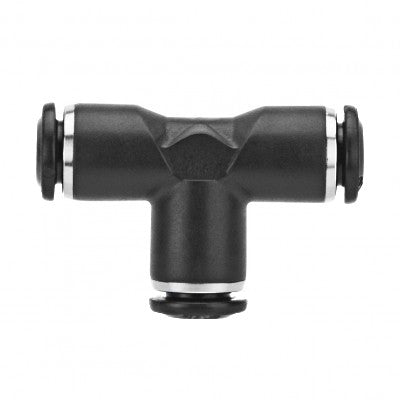

55230-12-10-12 AIGNEP | 55/56 Series | Union Tee Composite | 12mm Tube x 10mm Tube x 12mm Tube | Pack of 10

55230-12-10-12 by AIGNEP | 55/56 Series | Union Composite | 12mm Tube x 10mm Tube x 12mm Tube | Tee | Pack of 10

Save $0.32

$32.44

$32.44 - $32.44

$32.44

$32.12

$32.12 - $32.12

$32.12

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 55230-12-10-12 AIGNEP \| 10 \|
Series:	55/56 Series
Shape (Orientation):	Tee
Ends Configuration:	12mm Push-to-Connect, 10mm Push-to-Connect, 12mm Push-to-Connect, Some Ends Match
Material(s):	Nylon

Union Tee Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon

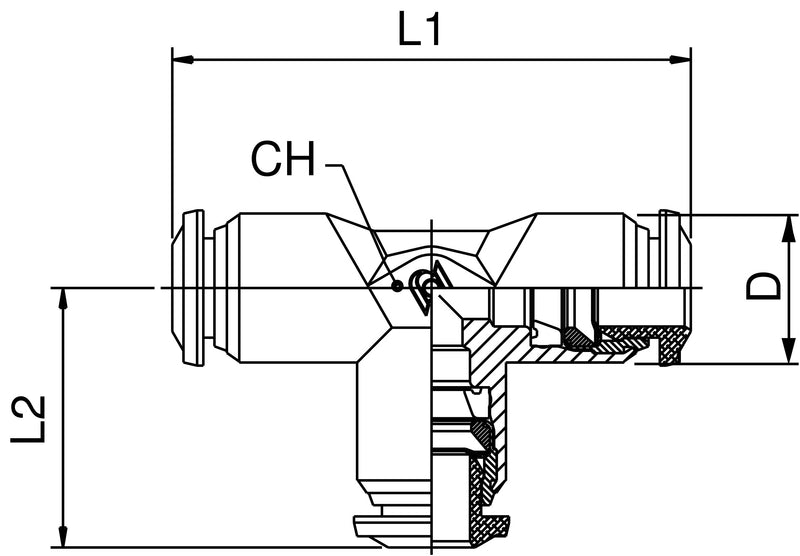

Product Number	Tube	L1	L2	CH	D	D1	D2
55230-4	4 mm	33 mm	16.5 mm	9 mm	10 mm	4 mm	4 mm
55230-5	5 mm	40 mm	20 mm	11 mm	12 mm	5 mm	5 mm
55230-6	6 mm	41 mm	20.5 mm	11 mm	12 mm	6 mm	6 mm
55230-6-4-6	6 x 4 x 6 mm	41 mm	20 mm	11 mm	12.5 mm	4 mm	6 mm
55230-8	8 mm	44 mm	22 mm	13 mm	14 mm	8 mm	8 mm
55230-8-6-8	8 x 6 x 8 mm	45 mm	22.5 mm	13 mm	14 mm	6 mm	8 mm
55230-10	10 mm	53 mm	26.5 mm	16 mm	17 mm	10 mm	10 mm
55230-10-8-10	10 x 8 x 10 mm	53 mm	26 mm	16 mm	17 mm	8 mm	10 mm
55230-12	12 mm	61.5 mm	30 mm	19 mm	20 mm	12 mm	12 mm
55230-12-10-12	12 x 10 x 12 mm	61.5 mm	30 mm	19 mm	20 mm	10 mm	12 mm
55230-14	14 mm	61 mm	30.5 mm	20 mm	21 mm	14 mm	14 mm
55230-14-10-14	14 x 10 x 14 mm	61 mm	30 mm	20 mm	21 mm	10 mm	14 mm
55230-14-12-14	14 x 12 x 14 mm	61 mm	30.5 mm	20 mm	21 mm	12 mm	14 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
