55240-8-10 AIGNEP | 55/56 Series | Plug-In Tee | 8mm Tube x 10mm Stud | Pack of 10

55240-8-10 by AIGNEP | 55/56 Series | Plug-In | 8mm Tube x 10mm Stud | Tee | Pack of 10

Save $11.15

$27.87

$27.87 - $27.87

$27.87

$16.72

$16.72 - $16.72

$16.72

Package Quantity: 10 ea

Specifications for Variant SKU: 55240-8-10 AIGNEP \| 10 \|
Series:	55/56 Series
Shape (Orientation):	Tee
Ends Configuration:	8mm Push-to-Connect, 10mm Tube Stub, 8mm Push-to-Connect, Some Ends Match
Material(s):	Nylon

Tee Plug In Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon

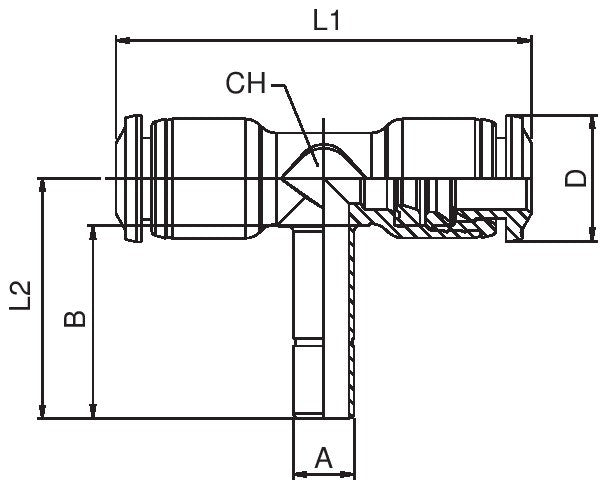

Product Number	Tube	A	B	L1	L2	CH	D
55240-4	4 mm	4 mm	17 mm	33 mm	20.7 mm	7 mm	10 mm
55240-4-6	4 mm	6 mm	19 mm	33 mm	22.7 mm	7 mm	10 mm
55240-6	6 mm	6 mm	19 mm	41 mm	23.7 mm	9 mm	12.5 mm
55240-6-4	6 mm	4 mm	17 mm	41 mm	21.7 mm	9 mm	12.5 mm
55240-8	8 mm	8 mm	20 mm	44 mm	26 mm	10 mm	14 mm
55240-8-10	8 mm	10 mm	22.2 mm	44 mm	28 mm	10 mm	14 mm
55240-10	10 mm	10 mm	22.5 mm	53 mm	30 mm	13 mm	17 mm
55240-10-12	10 mm	12 mm	25 mm	53 mm	32.2 mm	13 mm	17 mm
55240-12	12 mm	12 mm	25.5 mm	61.5 mm	33.5 mm	16 mm	20 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
