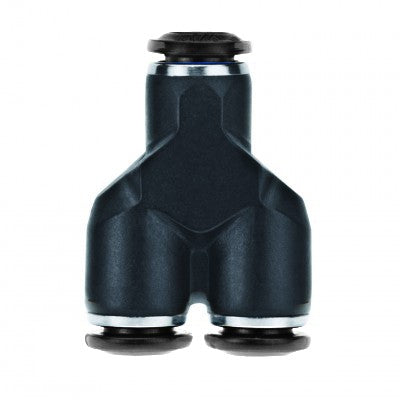

55310-6-4 AIGNEP | 55/56 Series | Union Y | 6mm Tube x 4mm Tube | Pack of 10

55310-6-4 by AIGNEP | 55/56 Series | Union | 6mm Tube x 4mm Tube | Y | Pack of 10

Save $13.89

$34.72

$34.72 - $34.72

$34.72

$20.83

$20.83 - $20.83

$20.83

Package Quantity: 10 ea

Specifications for Variant SKU: 55310-6-4 AIGNEP \| 10 \|
Series:	55/56 Series
Shape (Orientation):	Y
Ends Configuration:	6mm Push-to-Connect, 4mm Push-to-Connect, 4mm Push-to-Connect, Some Ends Match
Material(s):	Nylon

Union Y Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon

Product Number	Tube	A	D1	D2	L	CH	D
55310-4	4 mm	11 mm	4 mm	4 mm	31.5 mm	10 mm	10 mm
55310-6	6 mm	13.5 mm	6 mm	6 mm	37 mm	12 mm	12 mm
55310-8	8 mm	15.5 mm	8 mm	8 mm	40 mm	14 mm	14 mm
55310-10	10 mm	19 mm	10 mm	10 mm	48.5 mm	17 mm	18 mm
55310-12	12 mm	22 mm	12 mm	12 mm	57.5 mm	20 mm	20 mm

Unequal Union Y Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon

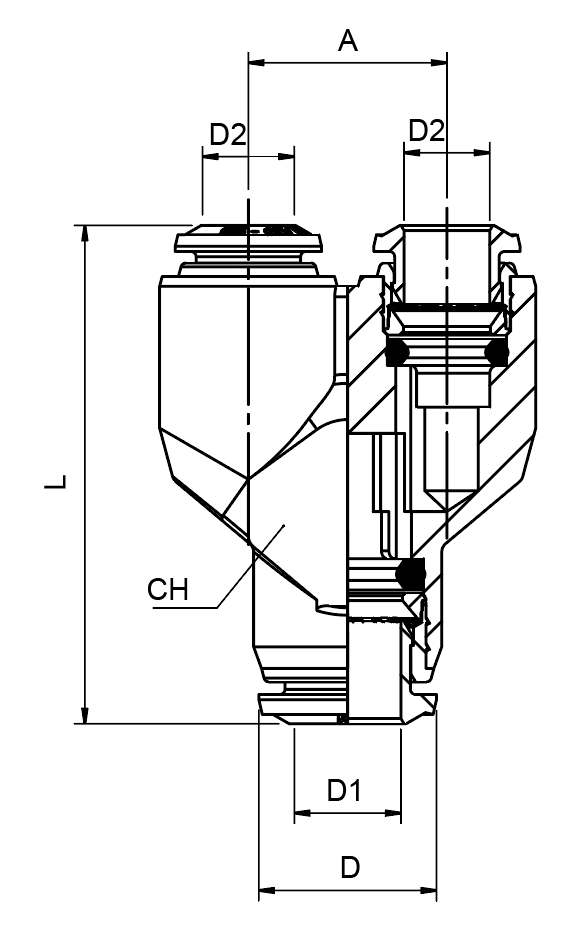

Product Number	Tube	A	D1	D2	L	CH	D
55310-6-4	6 x 4 mm	13.5 mm	6 mm	4 mm	36.5 mm	12 mm	12.5 mm
55310-8-6	8 x 6 mm	15.5 mm	8 mm	6 mm	41 mm	14 mm	14 mm
55310-10-8	10 x 8 mm	19 mm	10 mm	8 mm	47.5 mm	17 mm	18 mm
55310-12-8	12 x 8 mm	22 mm	12 mm	8 mm	57.5 mm	20 mm	20 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
