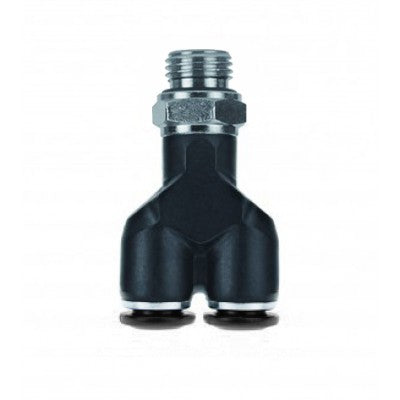

55325-12-3/8 by AIGNEP | 55/56 Series | Swivel | 12mm Tube x 3/8" Male BSPP | Y | Pack of 10

Save $0.40

$40.00

$40.00 - $40.00

$40.00

$39.60

$39.60 - $39.60

$39.60

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 55325-12-3/8 AIGNEP \| 10 \|
Series:	55/56 Series
Shape (Orientation):	Y
Ends Configuration:	12mm Push-to-Connect, 3/8in Male BSPP, 12mm Push-to-Connect, Some Ends Match
Material(s):	Nylon
Seal Material(s):	Buna-N/Nitrile Rubber

Union Y Threaded Composite - BSPP

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon
Thread Seal: NBR
Thread Type: BSPP

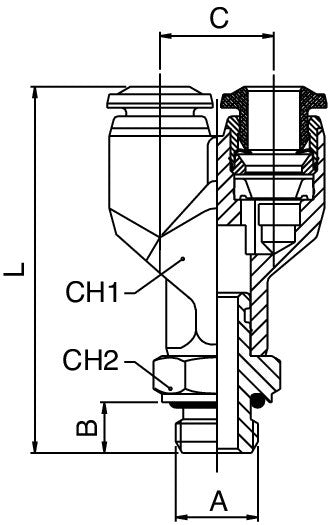

Product Number	Tube	A	B	C	L	CH1	CH2
55325-4-M5	4 mm	M5	4 mm	11 mm	36.5 mm	10 mm	10 mm
55325-4-1/8	4 mm	1/8"	6 mm	11 mm	38.5 mm	10 mm	13 mm
55325-4-1/4	4 mm	1/4"	8 mm	11 mm	40.5 mm	10 mm	16 mm
55325-6-M5	6 mm	M5	4 mm	13.5 mm	41.5 mm	12 mm	10 mm
55325-6-1/8	6 mm	1/8"	6 mm	13.5 mm	43.5 mm	12 mm	13 mm
55325-6-1/4	6 mm	1/4"	8 mm	13.5 mm	46.5 mm	12 mm	16 mm
55325-8-1/8	8 mm	1/8"	6 mm	15.5 mm	47 mm	14 mm	13 mm
55325-8-1/4	8 mm	1/4"	8 mm	15.5 mm	50 mm	14 mm	16 mm
55325-8-3/8	8 mm	3/8"	9 mm	15.5 mm	52 mm	14 mm	20 mm
55325-10-1/4	10 mm	1/4"	8 mm	19 mm	59.5 mm	17 mm	16 mm
55325-10-3/8	10 mm	3/8"	9 mm	19 mm	59.5 mm	17 mm	20 mm
55325-10-1/2	10 mm	1/2"	10 mm	19 mm	62 mm	17 mm	24 mm
55325-12-3/8	12 mm	3/8"	9 mm	22 mm	68.5 mm	20 mm	20 mm
55325-12-1/2	12 mm	1/2"	10 mm	22 mm	71 mm	20 mm	24 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
