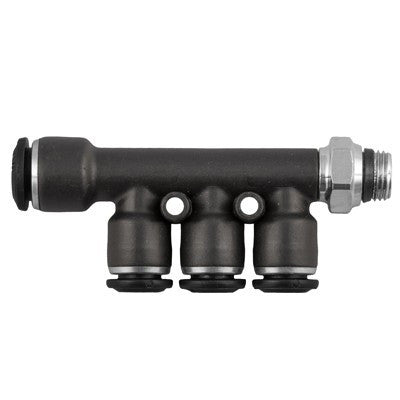

55360-10-8-3/8" AIGNEP | 55/56 Series | Reducing Manifold | 10mm Tube x 8mm Tube x 3/8" Swift-Fit | Pack of 10

55360-10-8-3/8 by AIGNEP | 55/56 Series | Reducing Manifold | 10mm Tube x 8mm Tube x 3/8" Swift-Fit | Pack of 10

Save $0.47

$46.52

$46.52 - $46.52

$46.52

$46.05

$46.05 - $46.05

$46.05

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 55360-10-8-3/8 AIGNEP \| 10 \|
Series:	55/56 Series
Shape (Orientation):	Manifold
Ends Configuration:	10mm Push-to-Connect, 8mm Push-to-Connect, 3/8in Male Swift-Fit
Material(s):	Nylon
Seal Material(s):	Buna-N/Nitrile Rubber

Reduction Manifold SWIFTFIT Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon
Thread Seal: NBR 70
Thread Type: SWIFTFIT

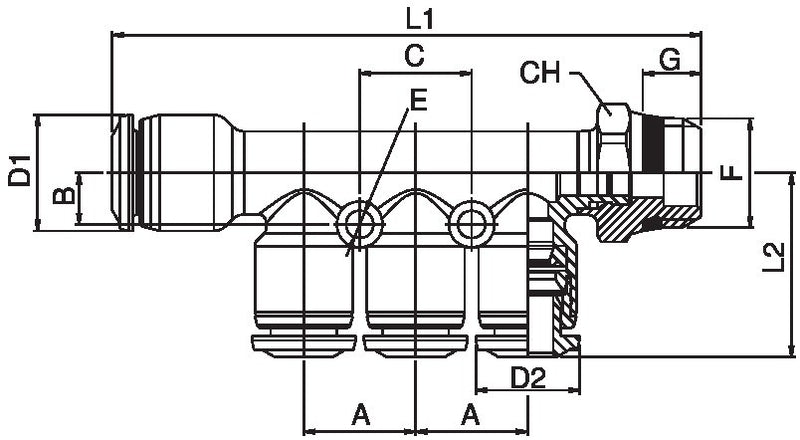

Product Number	Tube	F	A	B	L1	L2	C	D1	D2	E	G	CH
55360-6-4-1/8	6 x 4 mm	1/8"	13.5 mm	6 mm	70 mm	22 mm	13.5 mm	14 mm	12 mm	3.3 mm	5.5 mm	13 mm
55360-6-4-1/4	6 x 4 mm	1/4"	13.5 mm	6 mm	71.4 mm	22 mm	13.5 mm	14 mm	12 mm	3.3 mm	7 mm	15 mm
55360-8-4-1/8	8 x 4 mm	1/8"	13.5 mm	6 mm	70 mm	22 mm	13.5 mm	14 mm	12 mm	3.3 mm	5.5 mm	13 mm
55360-8-4-1/4	8 x 4 mm	1/4"	13.5 mm	6 mm	71.4 mm	22 mm	13.5 mm	14 mm	12 mm	3.3 mm	7 mm	15 mm
55360-8-6-1/8	8 x 6 mm	1/8"	13.5 mm	6 mm	70 mm	22 mm	13.5 mm	14 mm	12.5 mm	3.3 mm	5.5 mm	13 mm
55360-8-6-1/4	8 x 6 mm	1/4"	13.5 mm	6 mm	71.4 mm	22 mm	13.5 mm	14 mm	12.5 mm	3.3 mm	7 mm	15 mm
55360-10-6-1/4	10 x 6 mm	1/4"	15 mm	7 mm	81.5 mm	24 mm	15 mm	17 mm	14 mm	3.3 mm	7 mm	16 mm
55360-10-6-3/8	10 x 6 mm	3/8"	15 mm	7 mm	81.5 mm	24 mm	15 mm	17 mm	14 mm	3.3 mm	7.5 mm	17 mm
55360-10-8-1/4	10 x 8 mm	1/4"	15 mm	7 mm	81.5 mm	23 mm	15 mm	17 mm	14 mm	3.3 mm	7 mm	16 mm
55360-10-8-3/8	10 x 8 mm	3/8"	15 mm	7 mm	81.5 mm	23 mm	15 mm	17 mm	14 mm	3.3 mm	7.5 mm	17 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
