55365-10-6-1/4" AIGNEP | 55/56 Series | Reducing Manifold | 10mm Tube x 6mm Tube x 1/4" Male BSPP | Pack of 10
55365-10-6-1/4 by AIGNEP | 55/56 Series | Reducing Manifold | 10mm Tube x 6mm Tube x 1/4" Male BSPP | Pack of 10
55365-10-6-1/4" AIGNEP | 55/56 Series | Reducing Manifold | 10mm Tube x 6mm Tube x 1/4" Male BSPP | Pack of 10

55365-10-6-1/4 by AIGNEP | 55/56 Series | Reducing Manifold | 10mm Tube x 6mm Tube x 1/4" Male BSPP | Pack of 10

Save $30.70 Save $30.70
$76.75
$76.75 - $76.75
$76.75
$46.05
$46.05 - $46.05
$46.05

Package Quantity: 10 ea

Specifications for Variant SKU: 55365-10-6-1/4 AIGNEP | 10 |
Series: 55/56 Series
Shape (Orientation): Manifold
Ends Configuration: 10mm Push-to-Connect, 6mm Push-to-Connect, 1/4in Male BSPP
Material(s): Nylon
Seal Material(s): Buna-N/Nitrile Rubber

Reduction Manifold Composite - BSPP

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon
Thread Seal: NBR
Thread Type: BSPP

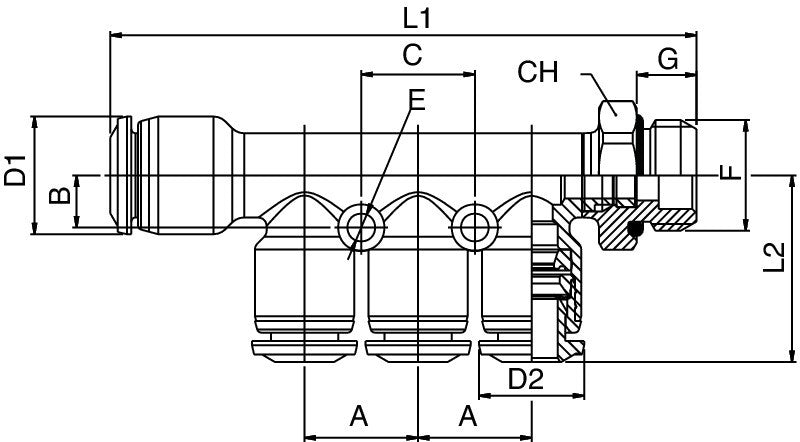

Product Number Tube F A B L1 L2 C D1 D2 E G CH
55365-6-4-1/8 6 x 4 mm 1/8" 13.5 mm 6 mm 70.7 mm 21.8 mm 13.5 mm 14 mm 12 mm 3.3 mm 5.4 mm 13 mm
55365-6-4-1/4 6 x 4 mm 1/4" 13.5 mm 6 mm 70 mm 21.8 mm 13.5 mm 14 mm 12 mm 3.3 mm 7.1 mm 16 mm
55365-8-4-1/8 8 x 4 mm 1/8" 13.5 mm 6 mm 70.7 mm 21.8 mm 13.5 mm 14 mm 12 mm 3.3 mm 5.4 mm 13 mm
55365-8-4-1/4 8 x 4 mm 1/4" 13.5 mm 6 mm 70 mm 21.8 mm 13.5 mm 14 mm 12 mm 3.3 mm 7.1 mm 16 mm
55365-8-6-1/8 8 x 6 mm 1/8" 13.5 mm 6 mm 70.7 mm 22.3 mm 13.5 mm 14 mm 12.5 mm 3.3 mm 5.4 mm 13 mm
55365-8-6-1/4 8 x 6 mm 1/4" 13.5 mm 6 mm 70 mm 22.3 mm 13.5 mm 14 mm 12.5 mm 3.3 mm 7.1 mm 16 mm
55365-10-6-1/4 10 x 6 mm 1/4" 15 mm 7 mm 82.4 mm 23.7 mm 15 mm 17 mm 14 mm 3.3 mm 7.1 mm 16 mm
55365-10-6-3/8 10 x 6 mm 3/8" 15 mm 7 mm 82 mm 23.7 mm 15 mm 17 mm 14 mm 3.3 mm 8.1 mm 20 mm
55365-10-8-1/4 10 x 8 mm 1/4" 15 mm 7 mm 82.4 mm 23.2 mm 15 mm 17 mm 14 mm 3.3 mm 7.1 mm 16 mm
55365-10-8-3/8 10 x 8 mm 3/8" 15 mm 7 mm 82 mm 23.2 mm 15 mm 17 mm 14 mm 3.3 mm 8.1 mm 20 mm
>
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
