55430-1/8" AIGNEP | Banjo Series | Triple Banjo Stem | Male 1/8" BSPP

55430-1/8 by AIGNEP | Banjo Series | Triple Banjo Stem | Male 1/8" BSPP

Name: 55430-1/8 by AIGNEP | Banjo Series | Triple Banjo Stem | Male 1/8" BSPP
Brand: AIGNEP
SKU: 55430-1/8 AIGNEP
Price: 2.38 USD
Availability: InStock

Save $1.59

$3.97

$3.97 - $3.97

$3.97

$2.38

$2.38 - $2.38

$2.38

Specifications for Variant SKU: 55430-1/8 AIGNEP
Series:	Banjo Series
Shape (Orientation):	Banjo
Ends Configuration:	1/8in Male BSPP, 1/8in Male Banjo
Material(s):	Nickel-Plated Brass

Triple Banjo Stem

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Media: Compressed Air, Vacuum
Body: Nickel Plated Brass
Thread Type: BSPP

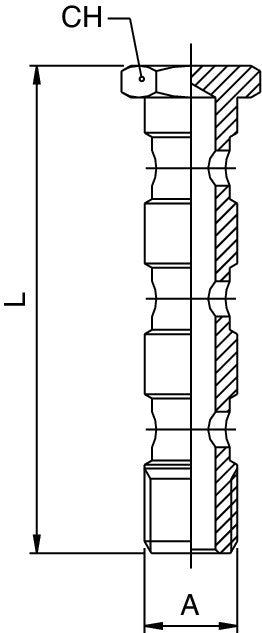

A	L	CH
55430-1/8	1/8"	61 mm	14 mm
55430-1/4	1/4"	69 mm	17 mm
55430-3/8	3/8"	80 mm	19 mm
55430-1/2	1/2"	94 mm	24 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
