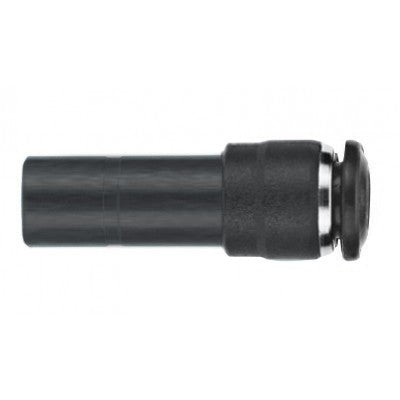

55700-12-6 AIGNEP | 55/56 Series | Reducer | 12mm Stud x 6mm Tube | Pack of 10

55700-12-6 by AIGNEP | 55/56 Series | Reducer | 12mm Stud x 6mm Tube | Pack of 10

Save $7.53

$18.82

$18.82 - $18.82

$18.82

$11.29

$11.29 - $11.29

$11.29

Package Quantity: 10 ea

Specifications for Variant SKU: 55700-12-6 AIGNEP \| 10 \|
Series:	55/56 Series
Shape (Orientation):	Straight
Ends Configuration:	12mm Tube Stub, 6mm Push-to-Connect
Material(s):	Nylon

Tube Reducer Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon

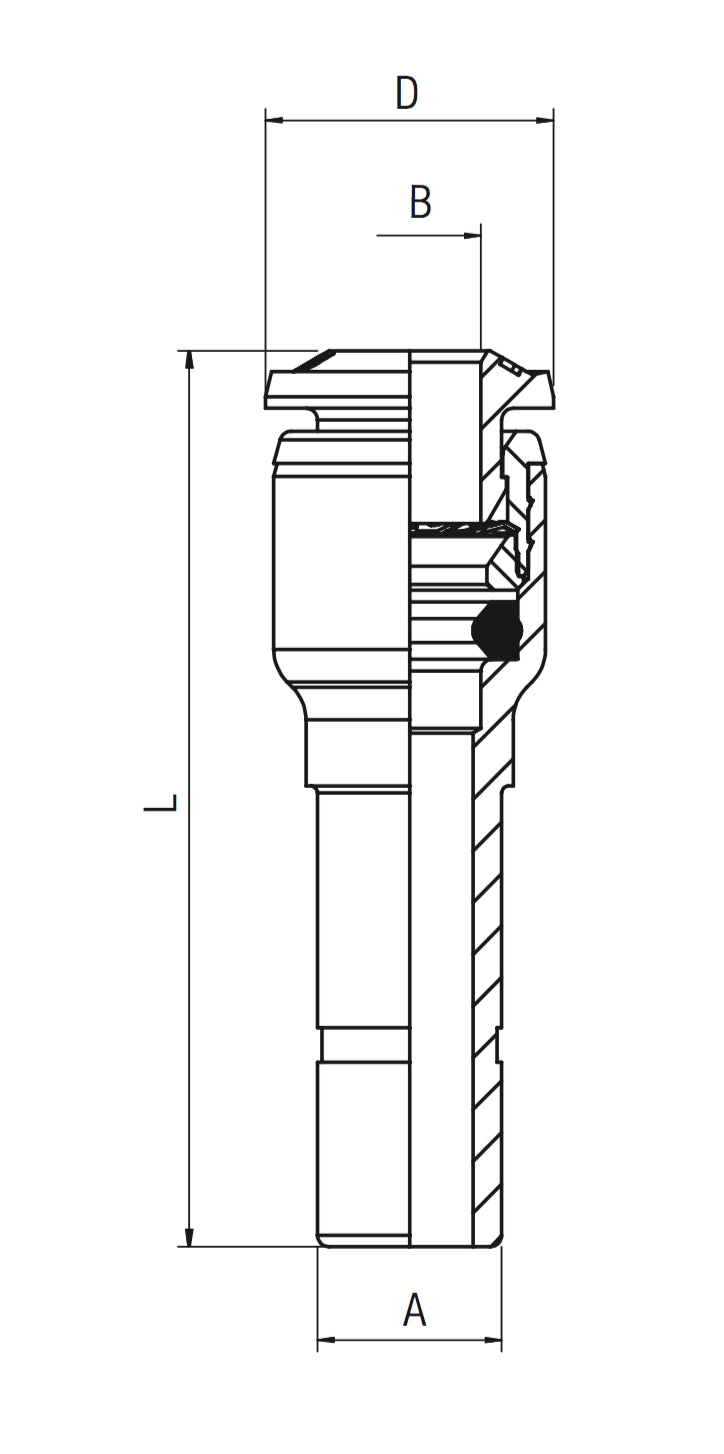

Product Number	A	B	L	D
55700-6-4	6 mm	4 mm	34 mm	10 mm
55700-8-6	8 mm	6 mm	39 mm	12.5 mm
55700-10-6	10 mm	6 mm	49.5 mm	14 mm
55700-10-8	10 mm	8 mm	42 mm	14 mm
55700-12-6	12 mm	6 mm	38.5 mm	12.5 mm
55700-12-8	12 mm	8 mm	41.5 mm	14 mm
55700-12-10	12 mm	10 mm	48.5 mm	17 mm
55700-14-8	14 mm	8 mm	37.5 mm	14 mm
55700-14-12	14 mm	12 mm	50 mm	20 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
