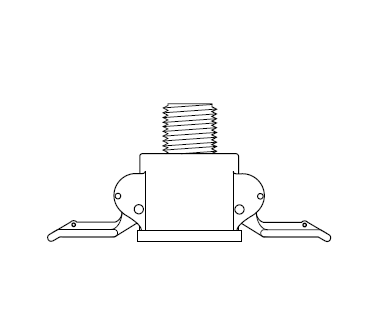

5600497 by NewAge | Cam and Groove Fitting | Type B | Coupler x 1-1/2" Male NPT | EPDM Seal | Nylon

5600497 by NewAge | Cam and Groove Fitting | Type B | Coupler x 1-1/2" Male NPT | EPDM Seal | Nylon

Save $0.80 Save $0.80
$19.88
$19.88 - $19.88
$19.88
$19.08
$19.08 - $19.08
$19.08

PRODUCT DESCRIPTION

NewAge Industries - Plastic Cam & Groove Fittings - Nylon - Type B - Insert x Male MNPT
Specifications for Variant SKU: 5600497 NewAge
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Female Cam & Groove, 1-1/2in Male NPT
Material(s): Nylon
Seal Material(s): EPDM
Features:
  • High impact strength at much lighter weight than metal counterparts
  • Corrosion resistant -- threads will not seize on mating threads
  • Will not easily cross thread or seize on mating threads
  • Electrically non-conductive
  • Resistant to most hydrocarbons, solvents, mild acids, and agricultural chemicals.
  • Made to MIL-C-27487 dimensions - fully interchangeable with other materials made to the same standards regardless of material
  • Made in the USA


  • Material: Glass-fiber reinforced nylon -- yellow in color
  • Standard Gasket: EPDM
  • Handle: 304L Stainless Steel
  • Pin: 302 Stainless Steel
  • Temperature Range: -30°F to 200°F**
  • Working Pressure**:
    • 1/4" thru 1": 175 psi
    • 1-1/4" thru 2": 150 psi
    • 3": 100 psi
    • 4": 50 psi
Notes:
  • On 1/4", 3/8", 1/2", and 5/8" sizes, the coupler and insert portions are to the 3/4" standard. On the 1-1/4" size, the coupler and insert portions are to the 1-1/2" standard.

**Values listed are typical for the material used in manufacture, except where noted, and are meant only as a guide to aid in design. Field testing should be performed to find the actual values for your application.

Part Number Dimensions (Thread Size)
5600385 1/2" Male MNPT
5600413 3/4" Male MNPT
5600441 1" Male MNPT
5600497 1-1/2" Male MNPT
5600525 2" Male MNPT
* Limited stock item; lead times and minimums may apply -- contact support.
